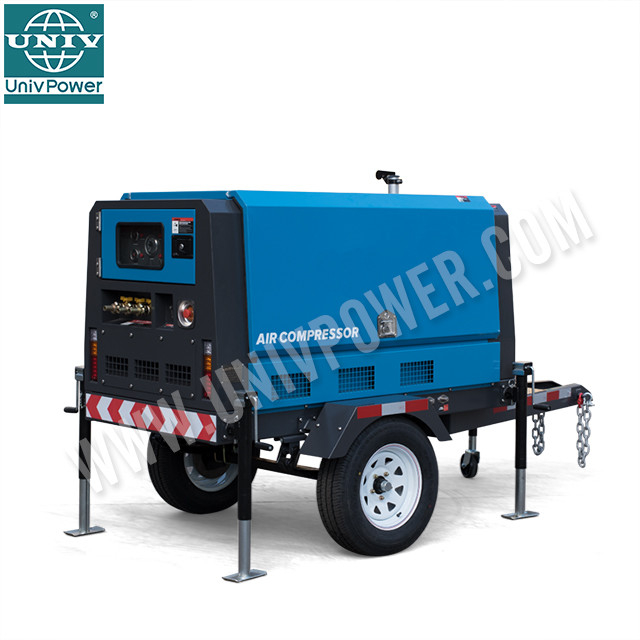

UNIV UDS series is the compressor which designed for construction sites. From 125Cfm up to 750Cfm .
The series all soundproof design, ease of operation, monitoring panels and protection functions.
With high performance , durable and good fuel efficient.
| TECHNICAL DATA | UDS-125S | UDS-185S | UDS-265S | UDS-390S | UDS-550S | UDS-750S |
| Type | Rotary twin screw | Rotary twin screw | Rotary twin screw | Rotary twin screw | Rotary twin screw | Rotary twin screw |
| Free air delivery m³/min | 3.5 | 5.2 | 7.5 | 11 | 15.5 | 21 |
| Free air delivery CFM | 125 | 185 | 265 | 390 | 550 | 750 |
| Rated Operating pressure kg/cm² (bar) | 7 | 7 | 8 | 10 | 10 | 10 |
| Receiver Tank capacity m³ | 0.027 | 0.027 | 0.08 | 0.105 | 0.186 | 0.186 |
| Air outlet | 2x3/4" | 3x3/4" | 3x3/4" | 3x3/4" and 1x2" | 2x3/4" and 2x2" | 2x3/4" and 2x2" |
| Engine | ||||||
| Engine type | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke |
| Model | FAW 4DW91-56G2 | Isuzu 4JB1-C | Isuzu 4JB1T-C | Cummins 6BT5.9-C150 | Cummins 6BTA5.9-C180 | Cummins 6CTA8.3-C260 |
| Rated power | 41kw@2650rpm | 45kw@3000rpm | 62kw@2500rpm | 112kw@2300rpm | 132kw@2500rpm | 194kw@2200rpm |
| Cylinders | 4 | 4 | 4 | 6 | 6 | 6 |
| Bore x stroke (mm) | 90*100 | 93*102 | 93*102 | 102*120 | 102*120 | 114*135 |
| Intake method | Nature aspirate | Nature aspirate | Turbo charged | Turbo charged | Turbo charged after-cooled. | Turbo charged after-cooled. |
| Displacement (L) | 2.54 | 2.771 | 2.771 | 5.9 | 5.9 | 8.3 |
| Fuel consumption (L/h) | 8.2 | 9 | 12.2 | 23.1 | 27.8 | 40.5 |
| Lubrication oil capacity (L) | 7.4 | 8.5 | 8.5 | 16.3 | 16.3 | 21.9 |
| Dimension and weight | ||||||
| Net weight (kg) | 720 | 1180 | 1290 | 2190 | 2600 | 3450 |
| Packing size LxWxH (mm) | 3100*1640*1690 | 3100*1640*1690 | 3320*1850*1750 | 4200*2000*2050 | 4500*1800*2250 | 4800*1950*2350 |
| Fuel tank capacity (L) | 60 | 60 | 90 | 120 | 250 | 400 |
| Download More Information | ||||||
PDF Link： UNIV air compressor catalog.pdf | ||||||
| Note: Please feel free to contact with us if any more customized request ! | ||||||
Soundproof Design: The UNIV UDS series features a soundproof design to minimize noise pollution, making them suitable for noise-sensitive environments such as urban construction sites.
Easy Operation: User-friendly operation with intuitive monitoring panels and protection functions for seamless use.
High Performance: Rotary twin-screw technology ensures stable, high-efficiency airflow with reduced fuel consumption.
Durable Build: Engineered for rugged conditions, offering durability in demanding construction environments.
Fuel Efficiency: Designed for high fuel efficiency, keeping operational costs low and performance high.
The UNIV UDS series is ideal for a wide range of applications, including:
Construction Sites: Providing air power for tools and machinery used in heavy construction projects.
Mining: Supporting mining operations by powering pneumatic drills and other tools.
Industrial Equipment: Ideal for powering industrial machinery that requires a stable air supply.
Cement Factories: Assisting in processes that require compressed air for mixing, pumping, and pneumatic handling.
Oil and Gas: Used in offshore and onshore oil and gas fields for various applications like drilling and well servicing.
Proven Reliability: UNIV compressors are built with high-performance, durable engines from renowned brands like Cummins, Isuzu, and FAW, ensuring long-lasting reliability.
Comprehensive Support: Our customer support team is available 24/7 to assist with installation, maintenance, and any inquiries.
Customization: We offer tailored solutions to meet your specific needs, with a range of models and features to suit various industries and requirements.
Cost-Effective Operation: With excellent fuel efficiency and low maintenance costs, the UDS series ensures that you get the most value from your investment.
Global Presence: We serve customers worldwide, delivering high-quality products with quick lead times.
1. What is the warranty period for UNIV UDS compressors?
The UNIV UDS series comes with a 1-year warranty, which covers manufacturing defects and component failures.
2. How do I maintain my UNIV UDS air compressor?
Routine maintenance includes regular checks on the engine, oil levels, air filters, and compressor hoses. We provide detailed maintenance guides and can assist with service schedules.
3. Can the UDS series be customized to fit my specific needs?
Yes! We offer customization options for air delivery rates, engine configurations, and additional features like control panels, air outlets, and tank sizes.
4. What type of fuel do these compressors use?
All models in the UDS series are powered by diesel, ensuring high power output and efficiency in demanding environments.
5. How do I place an order for a UNIV UDS compressor?
You can place an order through our website or contact our sales team directly for a customized quote based on your requirements.
