A solar Surveillance trailer is a mobile platform that integrates solar panels, video surveillance systems, and other auxiliary devices. Solar panels are installed on the top of the trailer, converting solar energy into electricity to power various electronic devices on the trailer. The trailer is equipped with high-performance cameras, data storage devices, wireless transmission modules, and more, capable of real-time collection and transmission of surveillance footage, enabling remote monitoring and management.
Featured Surveillance Trailer We Provide

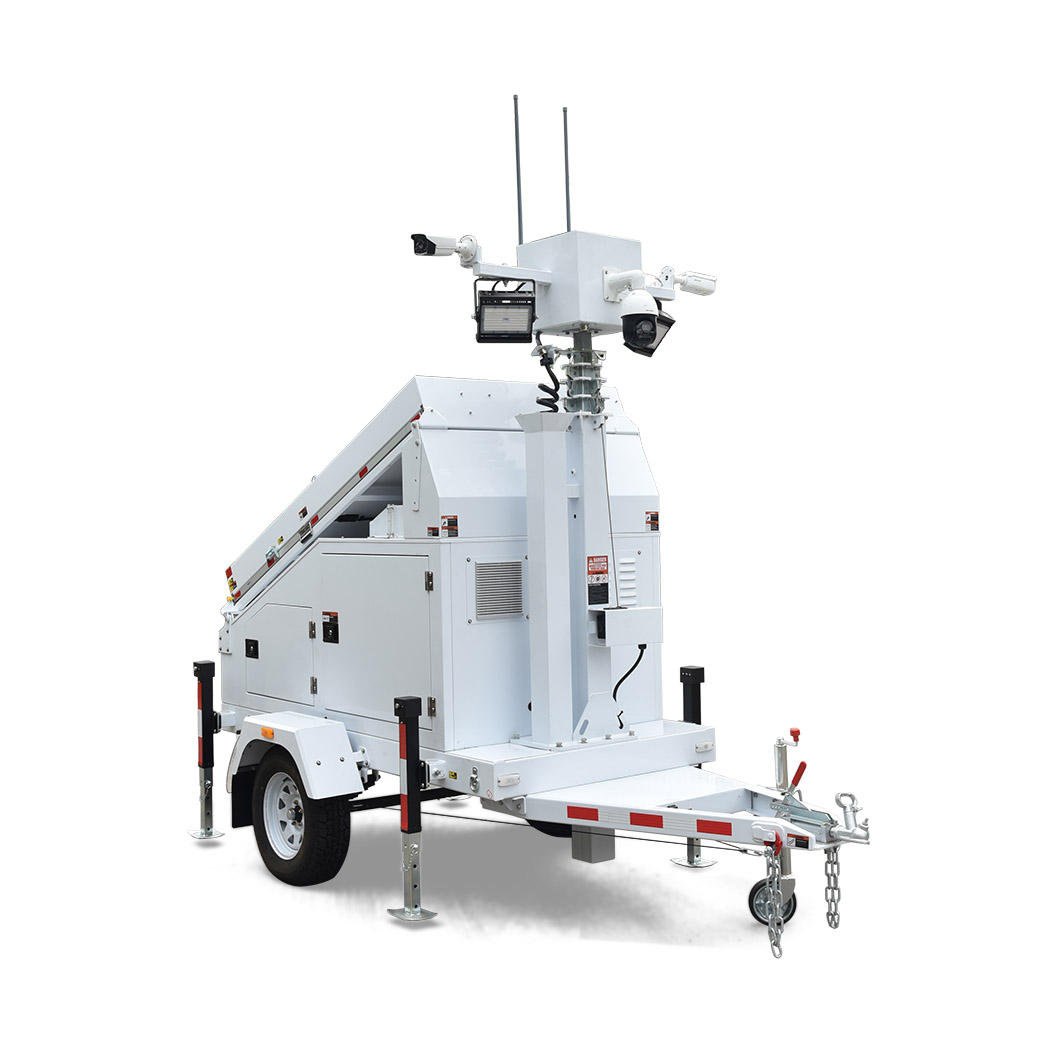

Mobile Solar Light Tower with Diesel Generator – Solar-Powered Surveillance Trailer for Construction & Security
3*380W 7M 4*100W
Mobile Solar Light Tower with Diesel Generator – Solar-Powered Surveillance Trailer for Construction & Security

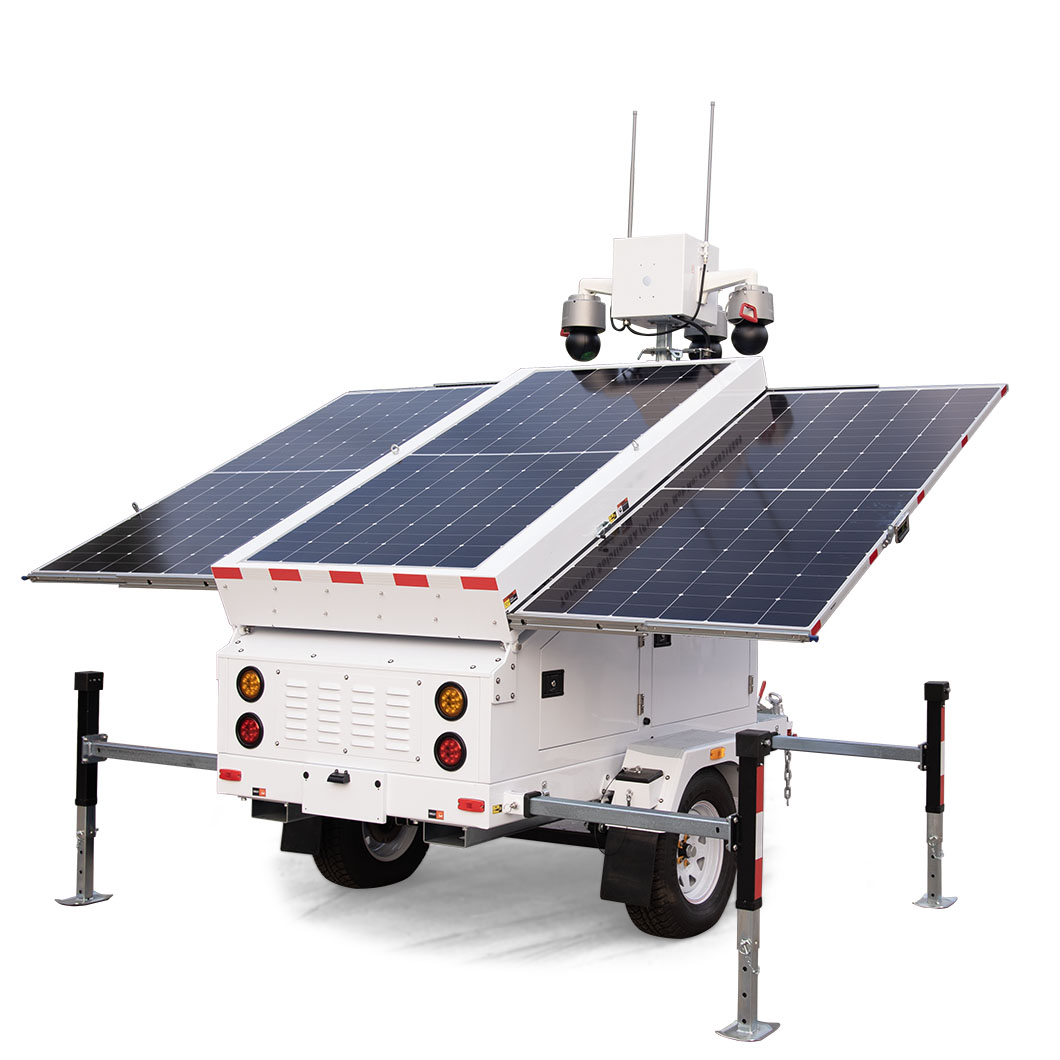

Mobile Solar security Camera Trailer Surveillance Trailer with Optional CCTV and PTZ Camera
3*380W 7M 4*100W
Mobile Solar security Camera Trailer Surveillance Trailer with Optional CCTV and PTZ Camera

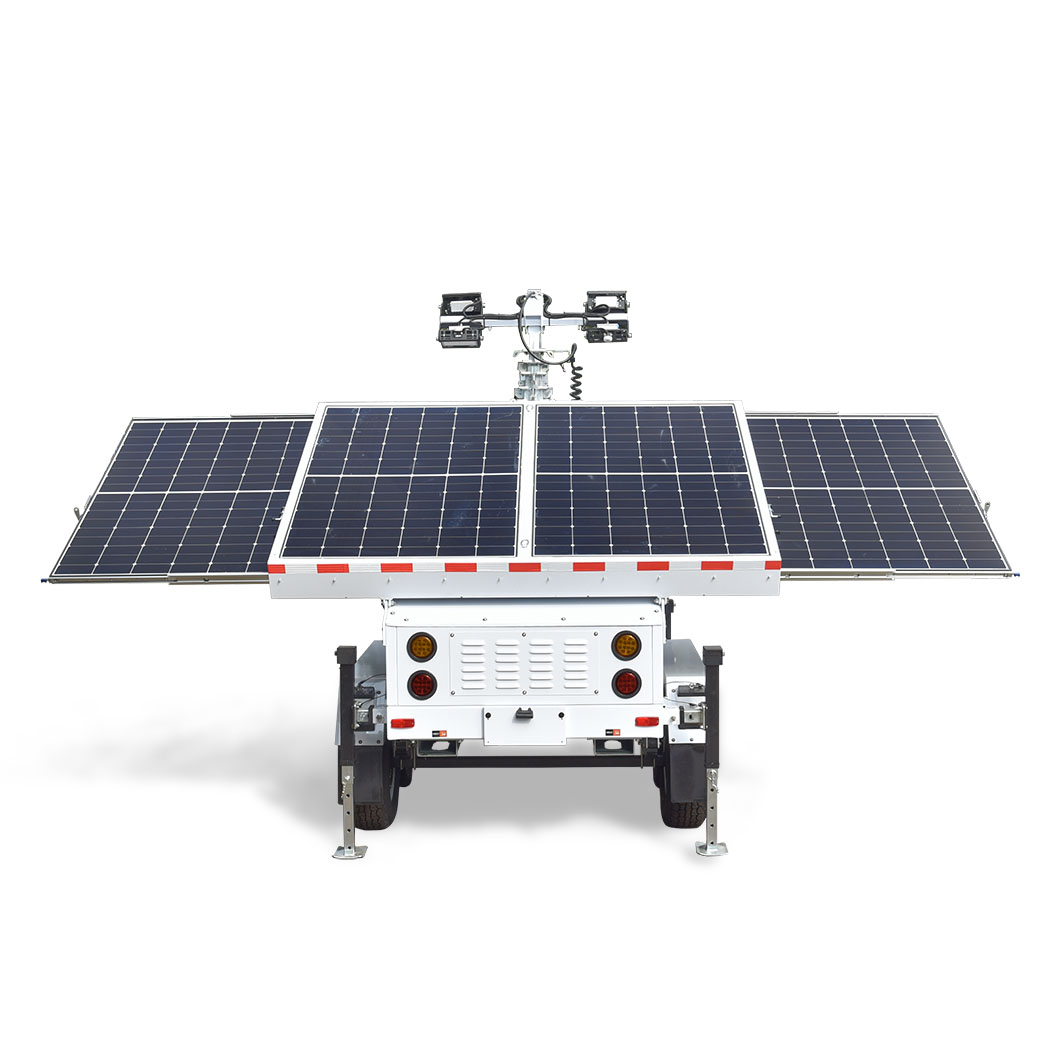

Portable Outdoor Solar Power Surveillance Trailer with CCTV Camera
1*455W 4.5M 2*60W
Portable Outdoor Solar Power Surveillance Trailer with CCTV Camera

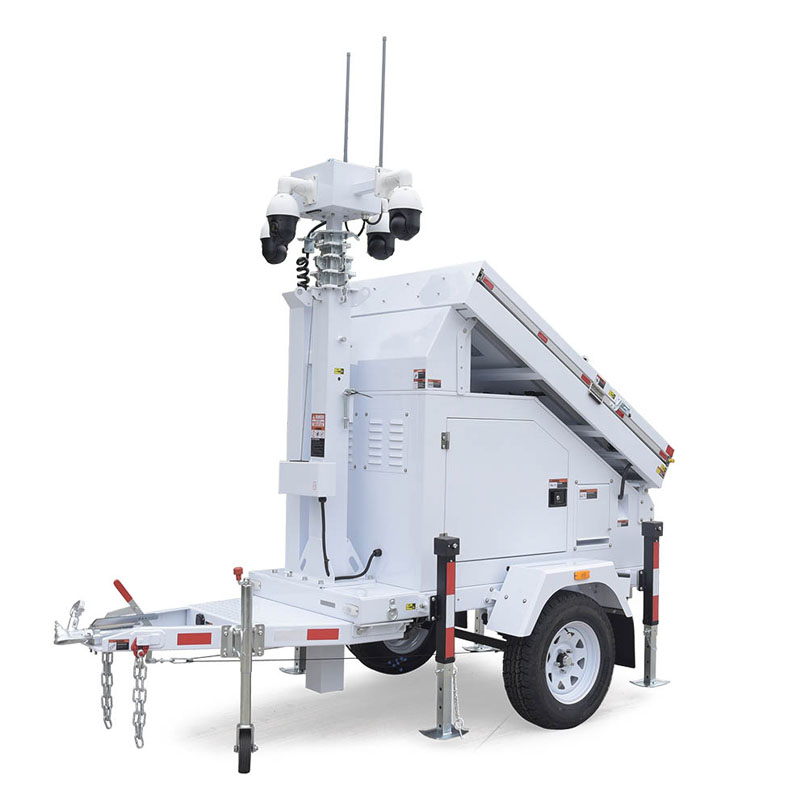

UST-600 Electric 360 Degree Rotation Control of LED Lights for Solar Surveillance Trailer Light Tower
2*455W 7M 4*160W
UST-600 Electric 360 Degree Rotation Control of LED Lights for Solar Surveillance Trailer Light Tower

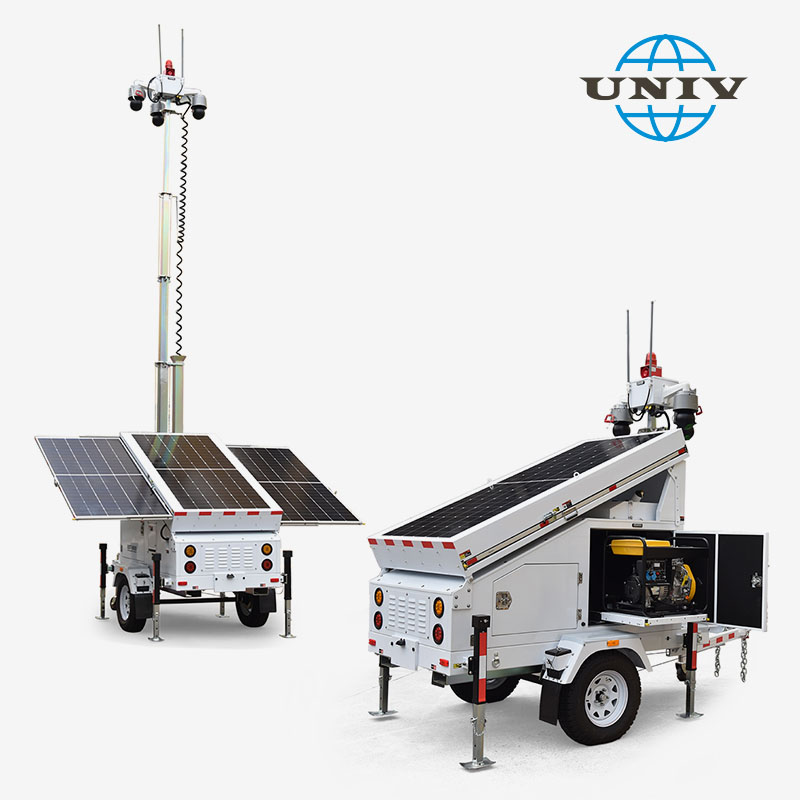

Mobile Solar Light Tower Surveillance Trailer with Optional Brand Diesel Engine Generator
3*380W 7M 4*100W
Mobile Solar Light Tower Surveillance Trailer with Optional Brand Diesel Engine Generator
Portable Solar Energy System Solar Supports Surveillance Trailer Outdoor Use
4*455W 9M 6*100W
Portable Solar Energy System Solar Supports Surveillance Trailer Outdoor Use
Technical Parameters
Model UST-900S
Solar Panel 3 × 435W
  1305W

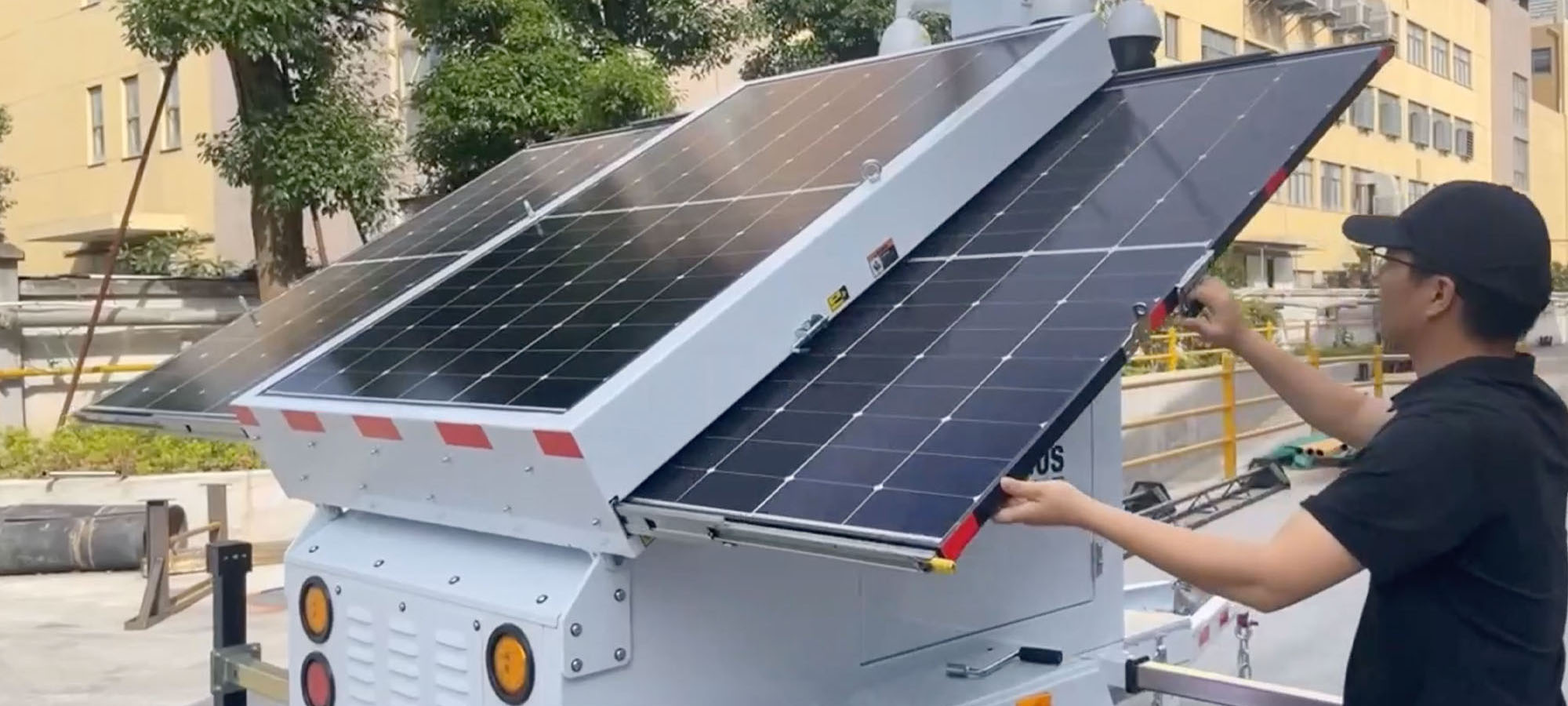

Panel Lifting 30°~45°,Electric Lifting
LFP Battery 1 × 460Ah  DC25.6V
Battery Capacity 11.77kWh 95% DoC
System Voltage DC24V
Battery Charger Yes
CCTV 2 × 4MP TandemVu
Storage 8TB NVR,36 Days
4G Router Yes
Loud Speaker Yes
Controller 60A MPPT
Mast & Height 5 Sections 7M
Mast Lifting Electric Winch
Trailer Standard US / AU / EU
Hitch 2'' Ball / 3'' Ring
Brake Mechanical
Axle Single
Tire 15 inch
Outriggers 4 ×
Lifting Ring 4 ×
Forklift Holes 2 ×
Wokring Temp -35℃~60℃
Charging Time 9 hours
Running Time 4 Days for 100W
Dimension(mm) 3550*1650*2800
Weight 1150kg
QTY in 20' / 40' 3 units / 7 units
How Do Surveillance Trailers Work?
Energy Collection and Conversion:
Solar panels absorb sunlight and generate DC.
An inverter converts DC to AC for use by the trailer's devices.

Energy Storage and Management:
Excess electricity is stored in onboard batteries.
An energy management system monitors the battery status and ensures efficient power distribution.

Monitoring Data Collection:
Cameras capture video and images, and environmental sensors monitor environmental parameters.
Data is stored on onboard hard drives, ensuring data security and integrity.

Data Transmission and Remote Management:
Wireless transmission modules send monitoring data in real-time to a remote monitoring center or user's device.
Users can access and manage the monitoring system remotely via the internet.
Applications of Surveillance Trailer for Superior Security

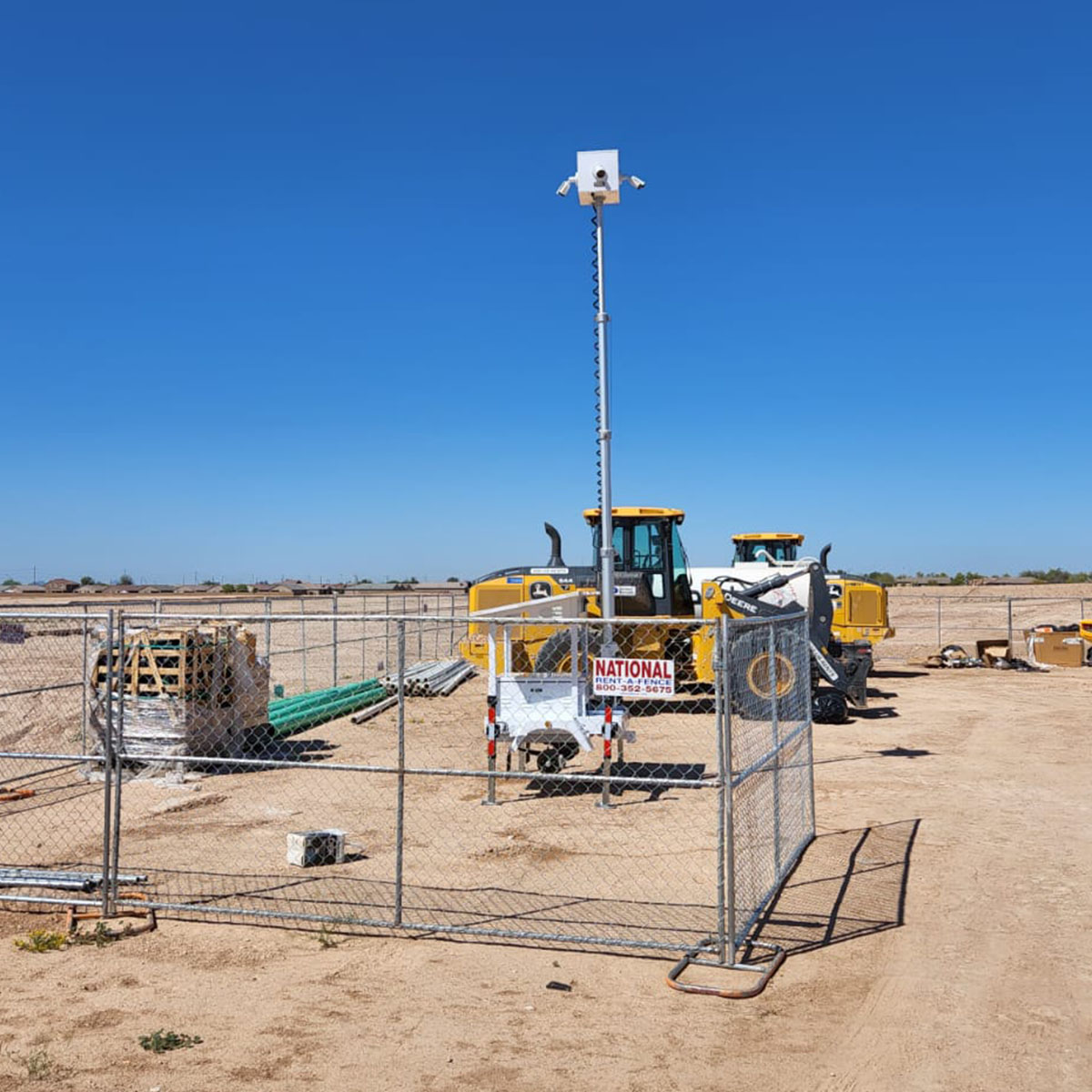

Construction Sites

At construction sites, mines, and other work areas, solar monitoring trailers can provide 24/7 uninterrupted monitoring services, ensuring construction safety.


Border Security

In border regions, solar monitoring trailers can be used for patrols and surveillance, enhancing border security.


Wildlife Protection

In nature reserves, solar monitoring trailers can be used to monitor wildlife activities, providing data support for scientific research.

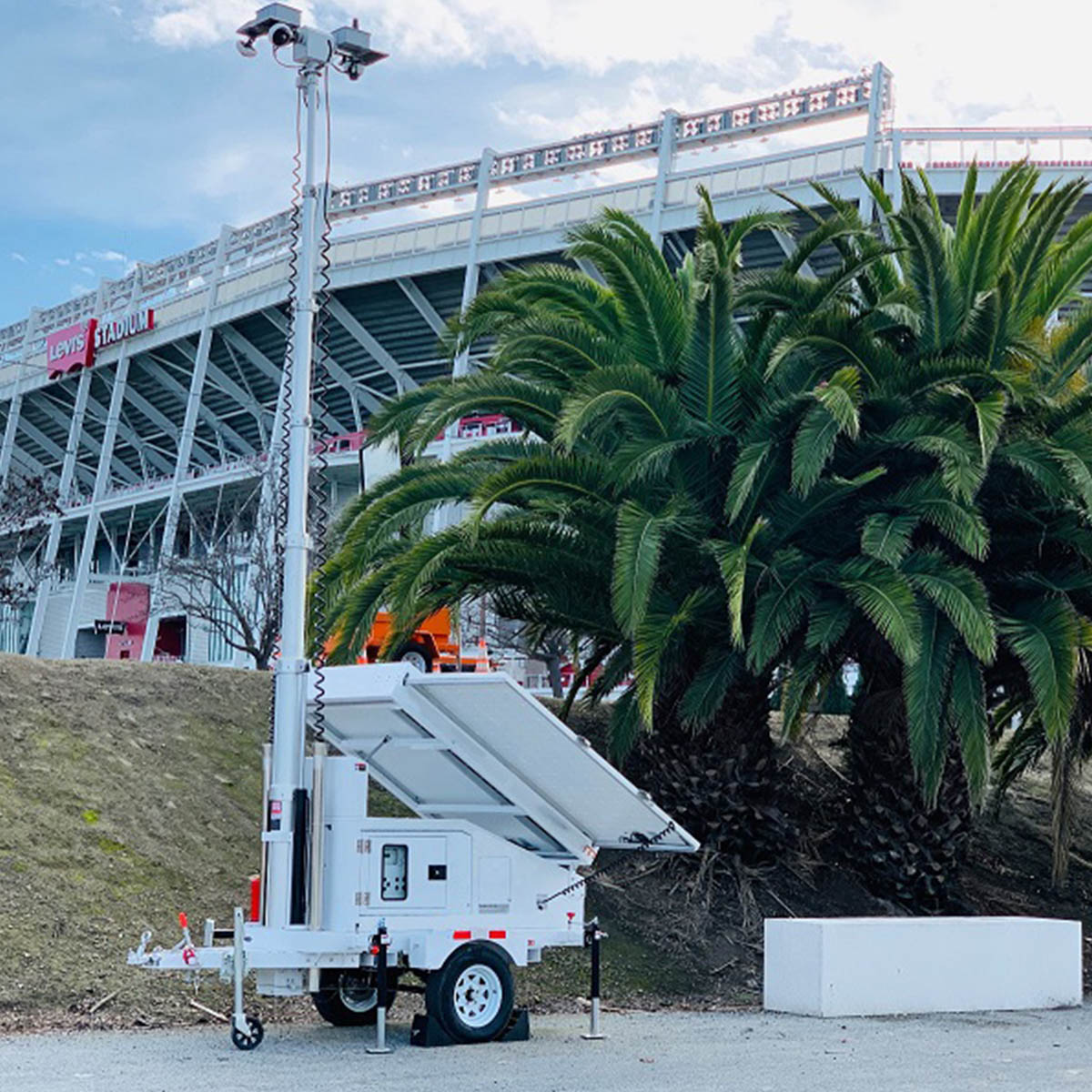

Large Events

At music concerts, sports events, and other large gatherings, solar monitoring trailers can be deployed in key areas to provide real-time monitoring, ensuring the smooth running of events.

Custom Service We Provide
Cross-functional team of sales and engineering experts
Detailed product showcase via mobile video call
Live demonstration of key features
Interactive Q&A session

FAQs of Surveillance Trailer

  • Q How do I place an order?

    A Once you confirm the model, configuration, and color, we will send you a proforma invoice (PI) with bank details.
    · Transfer a 30% deposit and share the bank slip with us.
    · We will process your order in our ERP system, conduct an internal review, and provide technical advice and an estimated delivery date.
    · After receiving the deposit, we will start the design and material procurement process.
    · Typically, orders are completed within 35-45 days. During this period, we will keep you updated on the production progress at each stage.
    · Once the machine is fully assembled and tested, we will update the PI with the shipping cost and request the balance payment.
    · After receiving the final payment, we will arrange shipment promptly.
  • Q Can I install my own camera?

    A Yes, we are open to customers installing the cameras themselves.
    We provide a hexagonal camera mounting box. It includes DC12V, 24V, 48V cable and POE switches for easy wiring.
  • Q What camera options are available?

    A We collaborate with leading CCTV brands like HIKVISION, DAHUA, and UNV to offer powerful and affordable cameras, such as:
    · 180° wide-angle bullet cameras.
    · 25x optical zoom PTZ cameras.
    · 360° fisheye cameras.
    · Thermal imaging cameras.
    For more models and details, please contact our sales team.
  • Q Where can the Solar CCTV Tower be used?

    A · Worksites, mines, warehouses, ports, squares, and tourist attractions to prevent and monitor violent or critical incidents.
    · Marathons, outdoor concerts, and public gatherings to manage temporary safety events.
    · Power plants, oilfields, and forests to reduce fire risks.
    · Coasts, dams, and rivers to monitor hydrological data.
  • Q What is the Solar CCTV Tower?

    A The Solar Tower is a state-of-the-art integrated IOT product for both residential and industrial applications.
    It features eco-friendly, zero-emission, self-powerd, and 24/7/365 continuous operation,with powerful functionality, mobility, and cost-efficiency, it helps user manage worksite flexibly, timely, and comprehensively. Applications include security, lighting, communication, broadcasting, and external power supply.
