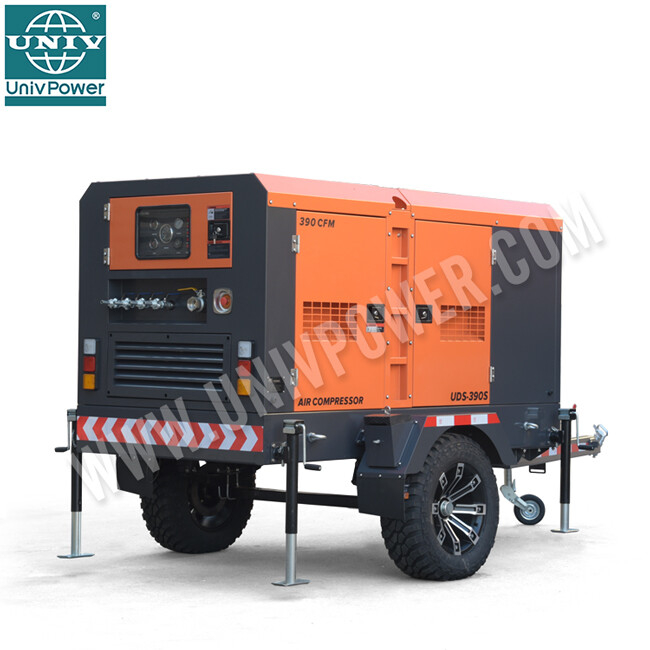

UNIV UDS series is the compressor which designed for construction sites. From 125Cfm up to 750Cfm .
The series all soundproof design, ease of operation, monitoring panels and protection functions.
With high performance , durable and good fuel efficient.
TECHNICAL DATA | UDS-125S | UDS-185S | UDS-265S | UDS-390S | UDS-530S | UDS-750S |
Type | Rotary twin screw | Rotary twin screw | Rotary twin screw | Rotary twin screw | Rotary twin screw | Rotary twin screw |
Free air delivery m³/min | 3.5 | 5.2 | 7.5 | 11 | 15 | 21 |
Free air delivery CFM | 125 | 185 | 265 | 390 | 530 | 750 |
Rated Operating pressure kg/cm² (bar) | 7 | 7 | 8 | 10 | 10 | 10 |
Receiver Tank capacity m³ | 0.027 | 0.027 | 0.08 | 0.105 | 0.186 | 0.186 |
Air outlet | 2x3/4" | 3x3/4" | 3x3/4" | 3x3/4" and 1x2" | 2x3/4" and 2x2" | 2x3/4" and 2x2" |
Engine | ||||||
Engine type | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke | Water-cooled, 4 stroke |
Model | FAW 4DW91-56G2 | Isuzu 4JB1-C | Isuzu 4JB1T-C | Cummins 6BT5.9-C150 | Cummins 6BTA5.9-C180 | Cummins 6CTA8.3-C260 |
Rated power | 41kw@2650rpm | 45kw@3000rpm | 62kw@2500rpm | 112kw@2300rpm | 132kw@2500rpm | 194kw@2200rpm |
Cylinders | 4 | 4 | 4 | 6 | 6 | 6 |
Bore x stroke (mm) | 90*100 | 93*102 | 93*102 | 102*120 | 102*120 | 114*135 |
Intake method | Nature aspirate | Nature aspirate | Turbo charged | Turbo charged | Turbo charged after-cooled. | Turbo charged after-cooled. |
Displacement (L) | 2.54 | 2.771 | 2.771 | 5.9 | 5.9 | 8.3 |
Fuel consumption (L/h) | 8.2 | 9 | 12.2 | 23.1 | 27.8 | 40.5 |
Lubrication oil capacity (L) | 7.4 | 8.5 | 8.5 | 16.3 | 16.3 | 21.9 |
Dimension and weight | ||||||
Net weight (kg) | 720 | 1180 | 1290 | 2190 | 2600 | 3450 |
Packing size LxWxH (mm) | 3100*1640*1690 | 3100*1640*1690 | 3320*1850*1750 | 4200*2000*2050 | 4500*1800*2250 | 4800*1950*2350 |
| Fuel tank capacity (L) | 60 | 60 | 90 | 120 | 250 | 400 |
| Download More Information | ||||||
PDF Link： UNIV air compressor catalog.pdf | ||||||
Note: Please feel free to contact with us if any more customized request !
| ||||||
Reliable Performance: The UNIV UDS series features advanced rotary twin-screw compressors that provide reliable and continuous air supply, ensuring maximum productivity.
Cost-Effective Operation: With highly fuel-efficient engines, our compressors help you reduce operational costs over time, even during extended use.
Low Noise, High Comfort: With soundproof designs, these compressors are ideal for use in sensitive environments where noise reduction is a priority.
Wide Range of Applications: The versatility of the UDS series makes it suitable for various industries, including construction, mining, and oil & gas.
Durability: Built to withstand the harshest environments, the UDS series is durable and ensures long-lasting performance with minimal downtime.
Easy Maintenance: The compressors come with built-in protection functions and user-friendly monitoring panels, making maintenance and operation simple and hassle-free.
1. What applications are the UNIV UDS compressors suitable for?
The UDS series is ideal for construction sites, mining operations, industrial tasks, oil & gas drilling, and infrastructure projects that require reliable, high-performance compressed air.
2. How fuel-efficient are these compressors?
Fuel consumption ranges from 8.2L/h (for the UDS-125S) to 40.5L/h (for the UDS-750S), providing excellent fuel efficiency for extended use in heavy-duty environments.
3. Are the compressors easy to maintain?
Yes, the UDS compressors are equipped with protection functions and user-friendly control panels, ensuring ease of maintenance and minimizing downtime.
4. Can the UNIV UDS series compressors be used in noise-sensitive areas?
Absolutely! The soundproof design of the UDS series ensures minimal noise, making it suitable for construction sites and other environments that require quieter equipment.
5. Do you offer custom solutions?
Yes, we provide customized solutions to meet specific requirements, including changes in capacity, pressure, or additional features. Feel free to contact us for more details.
