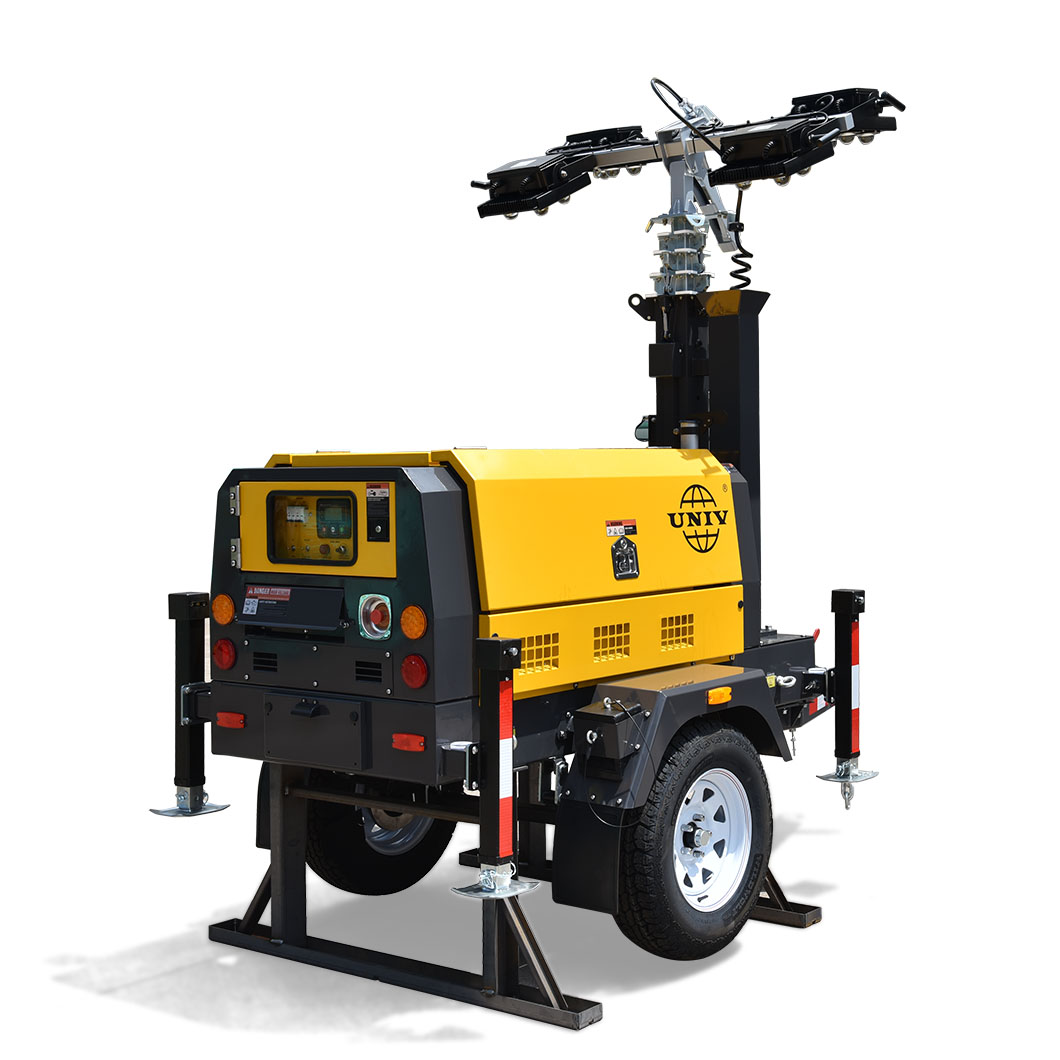

UGT-4000RLED High Quality Lighting Tower
The UGT-4000RLED lighting tower is designed with safety at its core and buit to deliver the highest reliabity and enhance productivity to the civil,road construcion,mining and rental industries.
1.4*400W LED lights, Delivering 256000Lm
2. Heavy duty mast with 350 degree rotation
3. Full bunded design
4. High emission approval
5. Low noise and fuel consumption
6.Australian/European /American standard
High-Powered Illumination: Equipped with 4×400W LED lights, providing 256000 Lumens for exceptional brightness.
Heavy-Duty Mast: 9 sections and 9 meters; it can be adjusted vertically by 90 degrees and horizontally by 350 degrees.
Fuel-Efficient & Low Noise: Designed to operate with minimal fuel consumption and noise levels at 74dB at 7m.
Durable & Weather-Resistant: Full bunded design with high emission approval, meeting Australian, European, and American standards.
Versatile Mast Options: Extendable up to 9m with manual, electric, or hydraulic lifting.
Reliable Power Supply: Equipped with a Raywin 3C11TG2-4 diesel engine and Kwise S164G108B3 alternator for steady performance.
Enhanced Mobility: Towable design with 14-inch tires, a robust suspension system, and a towing speed of 80 km/h.
Extended Operation: The machine can operate for 85 hours.
| MODEL | UGT-4000RLED | UGT-4000LLED | |
| Genset rated Power (KW) 50/60hz | 50 | 60 | |
| Dimension | Lenth | 3050mm | 3031mm |
| Width | 1500mm | 1488mm | |
| Height | 3350mm | 3220mm | |
| Height extended fully | 9M | 7.5m (9m optional) | |
| Gross Weight | 1300kg | 1300kg | |
| Engine | Engine Model | Raywin 3C11TG2-4 (16.08HP) | Laidong KM385BD |
| Rated Speed（rpm） | 1500 | 1500/1800 | |
| Cylinder No. | 3 | 3 | |
| Engine type | water-cooled | 4 stroke,water-cooled | |
| Air intake methed | Naturally aspirated | Naturally aspirated | |
| Emission | Non-emission | Non-emission | |
| Alternator | Model | Kwise S164G108B3 | kWISE KAL164A1 |
| Frequency (HZ) | 60 | 50/60 | |
| Rated voltage | 220V 50hz/AVR | 230V (50HZ), 240(60HZ) AC | |
| Insulation class | Class H | Class H | |
| Protection grade | IP23 | IP23 | |
| Mast and Light | Light type | LED | LED |
| Luminous Flux | 256000 LM | 210000 LM | |
| Light Qty x WATT | 4×400W | 4×350W | |
| Mast Sections | 9 | 5 | |
| Mast lifting method | Manual/Electric witch/Hydraulic | Manual/Electric witch/Hydraulic | |
| Mast Rotation | No/350 degrees optional | No/355 degrees optional | |
| Light Angle Adjust | Electric actuator | Electric actuator | |
| Trailer | Suspension | Leaf spring with mechanical braker | Leaf spring with mechanical braker |
| Towing Bar | A frame with Jockey wheel | Foldable Tow bar with Jockey wheel | |
| Stabilizing Leg | 4Pcs Manual Stabilizing Leg | 4Pcs Manual Stabilizing Leg | |
| Rim & Tyre | 14" | 14" | |
| Towing coupler | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | |
| Tail Lights | complex tail light | complex tail light | |
| Max Towing speed | 80km/h | 80km/h | |
| Other Item | Fuel Tank Type | Metal | Metal |
| Fuel Tank capacity | 100L | 45L | |
| Operating hours | 80 Hrs | 30 Hrs | |
| Controller | UK DEEPSEA DSE4620 | UK DEEPSEA DSE4520 | |
| Output | 2 receptacles | ||
| Max.Against Wind | 115km/hr | 20 m/s (45mph) | |
| Noise level dBA@7M | 74dB at 7m | 63dB(A) at 7m | |
| Max.Loading Qty by 40HQ | 14 | 14 | |
| Download |  Diesel light tower.pdf | ||
The UGT-4000RLED Towable Lighting Tower is ideal for:
Construction Sites: Ensures safe and well-lit work environments for nighttime and low-light conditions.
Mining Operations: Provides bright and durable illumination for rugged and remote mining locations.
Emergency & Disaster Relief: Supports rescue operations with reliable lighting in critical situations.
Outdoor Events: Offers an efficient lighting solution for large-scale public gatherings and concerts.
Roadworks & Maintenance: Enhances visibility and safety for workers during highway and infrastructure maintenance.
4×400W LED lights offering unmatched brightness.
350-degree rotatable mast for customized lighting angles.
Low emission Raywin 3C11TG2-4 (16.08HP) diesel engine ensures stable performance.
80-hour operation time reduces frequent refueling needs.
Fully bunded design to prevent leaks and spills.
IP23 protection grade ensures durability in tough environments.
Towable design with a foldable tow bar and stabilizing legs.
80 km/h towing speed for quick deployment.
Q1: What is the maximum mast height?
A: The standard mast extends up to 9 meters, with an optional 7-meter extension available.
Q2: How long can the lighting tower operate on a full fuel tank?
A: The 100L fuel tank allows for 80 hours of continuous operation.
Q3: Can the lighting tower be rotated for directional lighting?
A: Yes, the mast can be rotated 350 degrees for adjustable lighting coverage.
Q4: What type of power supply does it use?
A: The tower is powered by a Raywin 3C11TG2-4 (16.08HP) diesel engine paired with a Kwise S164G108B3 alternator.
Q5: Is the lighting tower compliant with international safety standards?
A: Yes, it meets Australian, European, and American safety and emission standards.
Q6: What is the maximum towing speed?
A: The unit can be towed at speeds of up to 80 km/h.
Q7: What are the available mast lifting options?
A: The mast can be lifted using manual, electric, or hydraulic methods.
