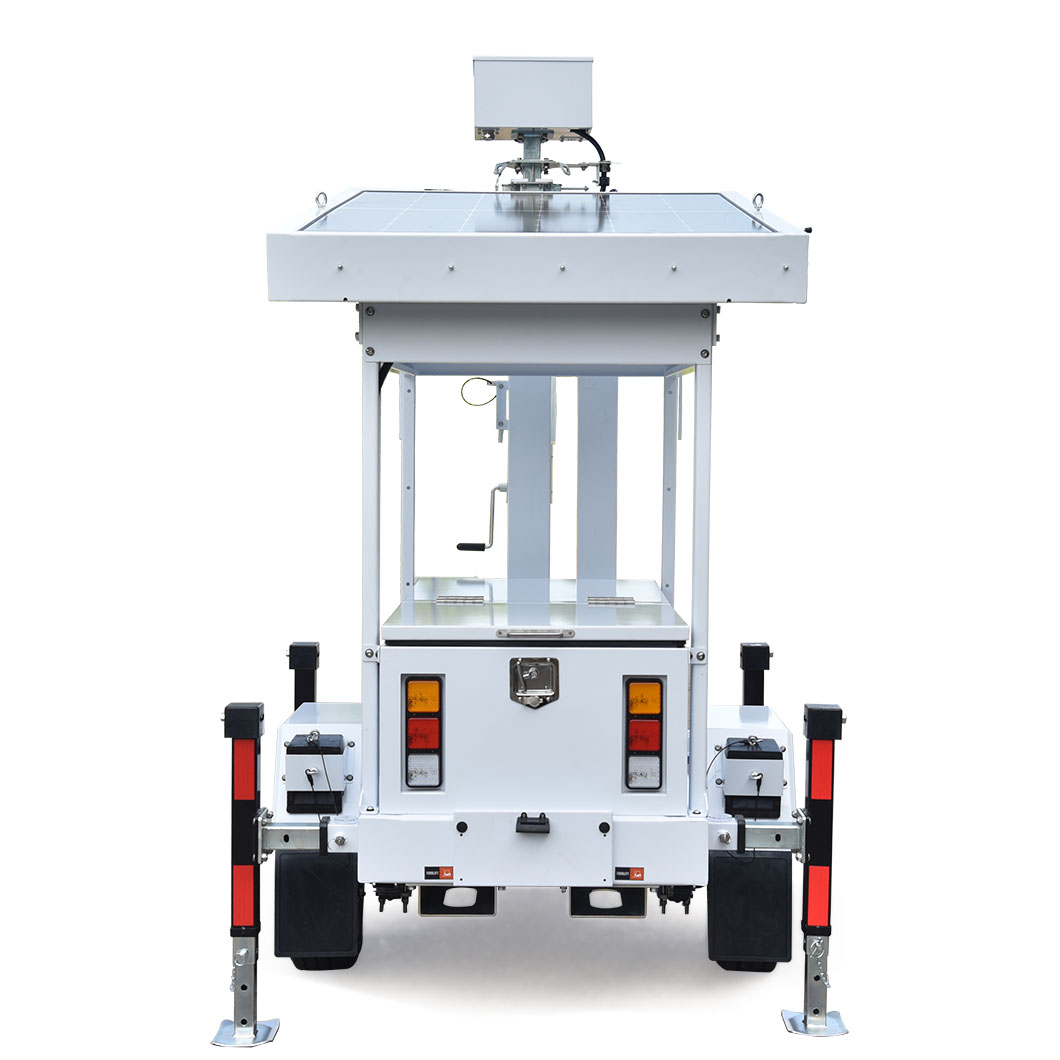

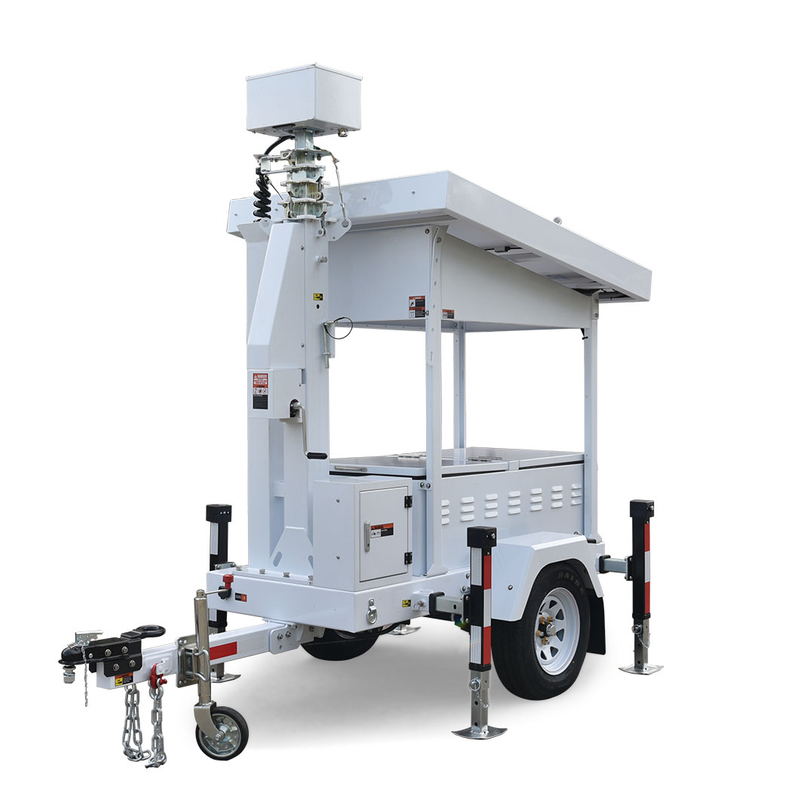

UST-300 is the smallest and cheapest model in UNIV surveillance trailer.
The tiny body means more loading quantity and fewer shipping cost.
Although it's small but the solar power system could support 40W device running 72hours,
It's enough for some small monitor station.
| Equipment Information | |
| Model | UST-300 |
| Length: | 2356mm |
| Width: | 2000mm |
| Height: | 2415mm |
| Weight | 650kg |
| Camera System | |
| Type | PTZ Camera / Bullet Camera |
| PTZ Camera | 4MP HD, 25×optical zoom,IR150m, 360° view |
| Bullet Camera | 2MP HD, IR50m |
| NVR | 8-ch, 2x2TB HDDs |
| 4G Router | Optional |
| Loudspeaker | Optional |
| Solar System | |
| Solar Panel | Monocrystalline silicon |
| Rate Power | 435W |
| Quantity | 1 pcs |
| Efficiency | 20.3% |
| Battery System | |
| Type | Gel-battery |
| Capacity | 150Ah |
| Voltage | 12VDC |
| Quantity | 2 pcs |
| Ambient Temperature | -35~60 ℃ |
| Charge System | |
| Type | MPPT |
| Rated Charge Current | 30A |
| Efficiency | 99.5% |
| System Voltage | 24VDC |
| GPRS | Optional |
| Lifting System | |
| Type | Telescopic Mast |
| Material | Aluminium |
| Max Height | 4.5 meters |
| Lifting System | Manual / Electric |
| Rotation | Optional |
| Wind Rating Speed | 100Km/h |
| Trailer System | |
| Type | Mobile Single Axle Trailer |
| Standard | Australia / America / Europe |
| Tow Hitch | 50mm ball 2000Kg |
| Brake system | / |
| Hand Brake | / |
| Stabilization Leg | 4 pcs Manual |
| Suspension System | Spring Type |
| Transportation | Truck, Crane, Forklift |
| Tyre & Rim | 185R14C |
| Hybrid System (Optional) | |
| Inverter | Output AC power from trailer |
| Battery Charger | Use AC power charge battery |
| Back-up Genset | / |
| Wind Turbine | 400W |
| Download More Information | |
 Data Sheet UST-300 CCTV.pdf | |
| Note: Please feel free to contact with us if any more customized request ! | |
