| Quantity: | |
|---|---|

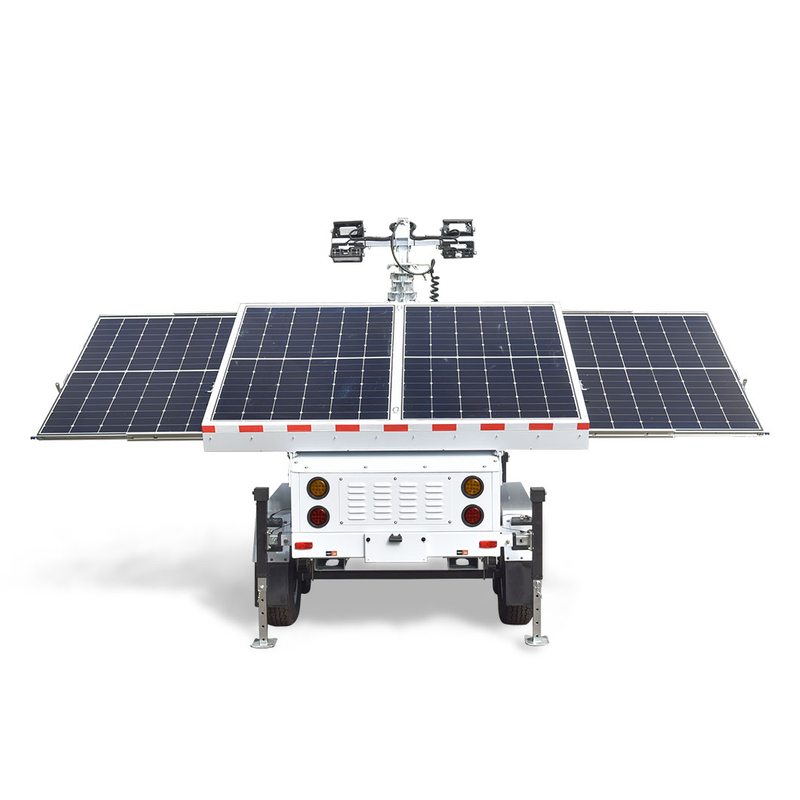

This is flagship product of surveillance trailer.
Besides equip powerful CCTV system,the trailer also set LED lighting system.
Customer no need buy lighting tower and surveillance trailer together,one unit UST-1200 is enough.
Any other required could be achieved on this unit like Diesel Genset,Monitor Screens or AC power output.
| Base System: | |||||
| Brand: | UNIV | ||||
| Name: | Solar CCTV Tower | ||||
| Model: | UST-1200 | ||||
| Material: | Steel Q235 | ||||
| Powder: | Outdoor Type | ||||
| Dimension: | Length×Width×Height | ||||
| Transport: | 2300×2200×2200 (mm) | ||||
| 7.5×7.2×7 (ft) | |||||
| Operate: | 3200×4400×7000 (mm) | ||||
| 10.5×14.4×23 (ft) | |||||
| Weight: | 1600kg / 3527lb | ||||
| System Voltage: | DC48V | ||||
| Work Temperature: | -35℃~50℃ / -31℉~122℉ | ||||
| Solar System: | Battery System: | ||||||||||
| Solar Panel: | 4 × 455W | GEL: | 8 × 200Ah | ||||||||
| Monocrystalline Silicon | Free-main | ||||||||||
| 72pcs | Deep-cycle | ||||||||||
| Voltage: | DC49V | Voltage: | DC12V | ||||||||
| Charging Time: | 9 hours | Series & Parallel: | 4 in series, then parallel | ||||||||
| Power Capacity: | 19200W·h | ||||||||||
| CCTV System: | Control System: | ||||||||||
| PTZ: | 2 × 4MP | Solar Controller: | MPPT | ||||||||
| 25× Optical,16× Digital | 60A | ||||||||||
| 100m IR Night Vision | Efficiency: | 95%+ | |||||||||
| NVR: | 4TB,4ch | Detection & Protection: | Short-Circuit | ||||||||
| 32.5 days(126GB/day) | Overload | ||||||||||
| Monitor: | 22'' | High Voltage | |||||||||
| Loudspeaker: | Two-ways | High Temperature | |||||||||
| Router: | 4G & Wi-Fi | Timer: | Dusk & Dawn | ||||||||
| 500m | Whole Machine: | Battery Isolator | |||||||||
| LED: | 4 × 50W | Each Device on-off | |||||||||
| Power Consumption: | 186W | Mast up-down | |||||||||
| Running Time: | 3.4 Days | ||||||||||
| Mast System: | Trailer System: | ||||||||||
| Body: | Steel Q235 | Standard: | US / AU / EU | ||||||||
| Galvanized | Tow Hitch: | 50mm / 2'' Ball Type | |||||||||
| Fastener: | Stainless Steel 304 | Trailer Light: | 7 Pin | ||||||||
| Wire Rope: | Stainless Steel 316 | Jockey Wheel: | 200mm / 8'' | ||||||||
| 4mm | Axle: | Single | |||||||||
| Type: | Square | Suspension | |||||||||
| Telescopic | Bump Brake | ||||||||||
| Height： | 6.5m / 21.3ft | Tire: | 2 × 215/70R15C | ||||||||
| Section: | 5 | Wheel Chock: | 2 | ||||||||
| Spring Cable: | 4 × Cat6e + 1 × Power Supply | Forklift Hole: | 2 | ||||||||
| Lifting Method: | Electric Winch | Lifting Ring: | 4 | ||||||||
| Recommended Loading: | 5kg ~ 70kg / 11lb ~ 154lb | Outrigger: | 4 × Manual | ||||||||
| Windproof: | 117km/h / 73mph | Galvanized | |||||||||
| Warranty: | 2 years | ||||||||||
| Accessories: | Certification: | ||||||||||
| Operation Manual | Parts Manual | ISO9001 | ISO14001 | ||||||||
| Controller Manual | Allen Wrench | CE | UL | ||||||||
| Hex Wrench | SAA | COC | |||||||||
| Download More Information |  UST-1200 CCTV.pdf | ||||||||||
