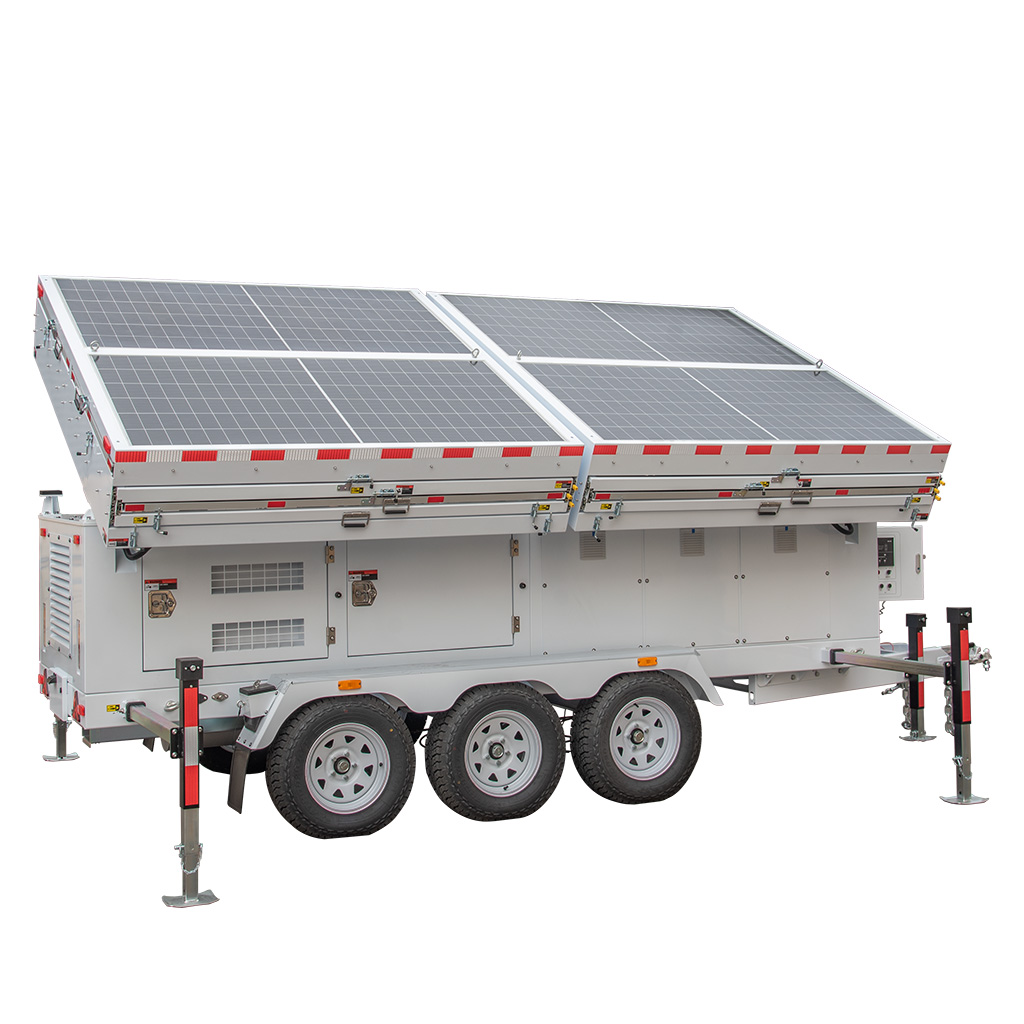

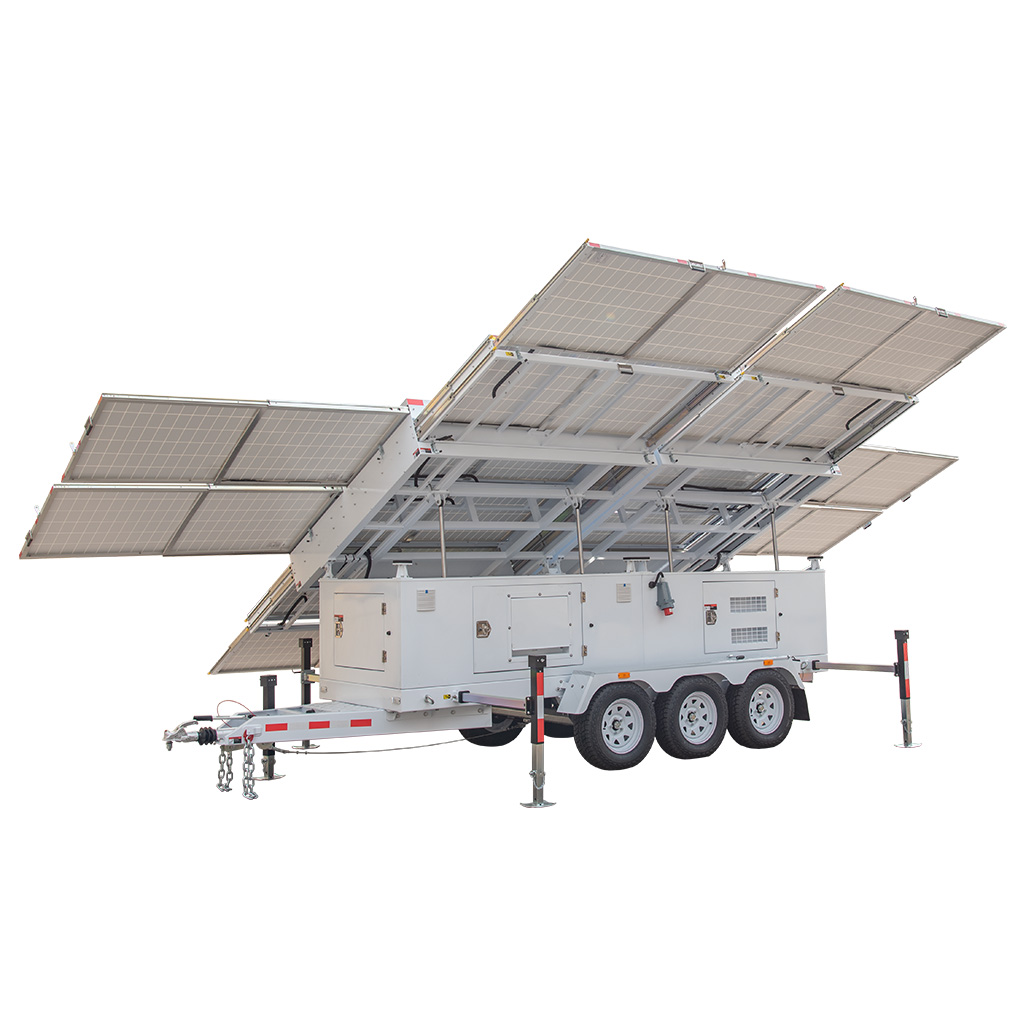

The UST-4800P is a heavy-duty mobile solar power station with 64.3kWh storage, a 30kVA Victron inverter and a 9kW backup genset for uninterrupted hybrid power in 120/240V split-phase.
1.64.3kWh LiFePO4 storage for mission-critical endurance
2.Dual Victron Quattro inverters delivering 30kVA with US-standard 120/240V split-phase outputKey Features
Commercial-Grade 30kVA Inversion — dual Victron Quattro inverters deliver 30kVA with US-standard 120/240V split-phase output.
Hybrid Solar-Diesel Architecture — 64.3kWh storage, a 9kW Perkins genset and a 7.52kW solar array provide zero-downtime continuity.
Climate-Controlled Enclosure — a 600W smart cooling and heating system keeps the unit operating reliably in extreme conditions.
Heavy-Duty Cam-Lock Distribution — copper busbar with 400A cam-lock input and output for high-amperage loads.
Full Remote Management — Victron Cerbo GX with Touch 70 and 4G router for monitoring and control from anywhere.
Road-Legal Triple-Axle Trailer — AU DOT compliant chassis with 5 outriggers for demanding sites.
Advantages
Zero-Downtime Hybrid Power — solar, storage and diesel backup mean no single point of failure.
Reduced Fuel and Emissions — the 7.52kW solar array meaningfully offsets diesel runtime and running costs.
US-Standard Split-Phase Output — 120/240V distribution ready for American equipment and job-sites.
Extreme-Climate Ready — climate-controlled enclosure operates reliably in heat and cold.
Commercial-Grade Reliability — Victron components, copper busbar and a Tier 3 Perkins genset.
Remotely Operable — full monitoring and control via Cerbo GX from any location.
Applications
Large events and entertainment — concerts, festivals, broadcast units and outdoor shows needing 30kVA-class power
Film and TV production — base camps, lighting, grip and catering power on location
Construction and infrastructure — large sites, temporary plant, site offices and heavy equipment support
Mission-critical backup — command centres, data and telecom sites where continuity is non-negotiable
Emergency response and disaster recovery — rapid, self-sufficient power where grids are down
Community and utility support — temporary microgrid and load support during outages or maintenance
FAQ
Q1: How much power can it deliver?
A: 30kVA continuous via dual Victron Quattro inverters with 120/240V split-phase output — 2.4 hours at full 30kVA load.
Q2: What happens when solar is not enough?
A: The 9kW Perkins genset provides automatic backup and can recharge the battery while running.
Q3: Can it run in extreme temperatures?
A: Yes — a 600W smart cooling and heating system maintains safe operating temperatures in hot and cold climates.
Q4: How is it monitored?
A: Victron Cerbo GX with Touch 70 and 4G router provides full remote monitoring and control.
Q5: What power connections does it have?
A: 3 × 400A cam-lock input, 50A and 30A 240V outlets, 30A and 20A 120V outlets, and 3 × 400A cam-lock output.
Q6: What is the trailer standard?
A: AU DOT compliant triple-axle trailer, 3" ring hitch, 5 outriggers and fork pockets; 3200 kg.
Q7: How is it shipped?
A: 1 unit per 20ft container, 2 units per 40ft container (CBU).
Specification Item | UNI-T8 P | UNI-T10 P | UNI-T16H (UST-4800P) |
Basic Parameters | |||
Model Name | UNI-T8 P Solar Generator Trailer | UNI-T10 P Solar Generator Trailer | UST-4800P Solar Generator Trailer |
Configuration | Standard 32kWh / 6kVA | Standard 32kWh / 6kVA | US Victron 64kWh / 30kVA |
Dimension (Stowed) | 2600 × 2300 × 2250 mm | 2600 × 2300 × 2250 mm | 4600 × 2300 × 2250 mm |
Dimension (Towing) | 3700 × 2300 × 2250 mm | 3700 × 2300 × 2250 mm | 5700 × 2300 × 2250 mm |
Dimension (Deployed) | 6500 × 6500 × 2250 mm | 6500 × 6500 × 2250 mm | 8400 × 6500 × 2250 mm |
Overall Weight | 1800 kg | 1800 kg | 3200 kg |
Solar System | |||
Solar Panel | 8 × 500W, Monocrystalline | 10 × 500W, Monocrystalline | 16 × 470W, Monocrystalline |
Solar Total Power | 4000W (4kW) | 5000W (5kW) | 7520W (7.52kW) |
Solar Panel Lifting | Hydraulic Lifting | Hydraulic Lifting | Hydraulic Lifting |
Solar Recharge Time | 7.6 hrs by Peak Solar | 6.1 hrs by Peak Solar | 7.9 hrs by Peak Solar |
Solar Controller | 80A MPPT with Remote Monitoring | 100A MPPT with Remote Monitoring | Victron 2 × 70A MPPT + Cerbo GX + Touch 70 + 4G Router |
Battery System | |||
Battery Type | LFP (LiFePO4) with Heater | LFP (LiFePO4) with Heater | LFP (LiFePO4) with Heater |
Battery Configuration | 2 × 314Ah, 51.2VDC | 2 × 314Ah, 51.2VDC | 4 × 314Ah, 51.2VDC |
Battery Capacity | 32.1kWh | 32.1kWh | 64.3kWh |
Design Life | 10+ years | 10+ years | 10+ years |
Inverter & Distribution | |||
Inverter System | 6kW / 6kVA, 1 Phase 230VAC | 6kW / 6kVA, 1 Phase 230VAC | Victron Quattro 2 × 15kVA (30kVA) + 120/240V Transformer |
Busbar | Standard Terminal Blocks | Standard Terminal Blocks | Input & Output, Copper Busbar + Acrylic Protective Cover |
Input Plug | 1Ph 230VAC, 1 × 32A with MCB | 1Ph 230VAC, 1 × 32A with MCB | 1Ph 240VAC, 3 × 400A Cam-Lock |
Output Socket | 1Ph 230VAC, 1 × 32A + 2 × 15A with MCB | 1Ph 230VAC, 1 × 32A + 2 × 15A with MCB | 1Ph 240VAC: 1 × 50A + 1 × 30A |
Operating Time | 4.8 hours for 6kW load | 4.8 hours for 6kW load | 2.4 hours for 30kVA load |
Genset & Thermal | |||
Backup Genset | Optional / N/A | Optional / N/A | Perkins 403D-11G, Tier 3 ESE, 9kW, 60Hz 1PH 120/240VAC |
Air Condition / Climate | N/A | N/A | 600W, Smart Cooling and Heating |
Trailer & Base | |||
Trailer Standard | AU ADR | AU ADR | AU DOT |
Tow Hitch | 2" Ball Hitch | 2" Ball Hitch | 3" Ring Hitch |
Axle | Double Axle | Double Axle | Triple Axle |
Stabilizer / Outrigger | 4 × Outrigger | 4 × Outrigger | 5 × Outrigger |
Forklift Hole | Fork Pockets | Fork Pockets | Fork Pockets |
Finish / Coating | Internal & External Anti-Corrosion Powder Coating | Internal & External Anti-Corrosion Powder Coating | Internal & External Anti-Corrosion Powder Coating |
Transportation | |||
Qty in 20'/40' Container | CBU 2 units in 20ft, 4 units in 40ft | CBU 2 units in 20ft, 4 units in 40ft | CBU 1 unit in 20ft, 2 units in 40ft |
