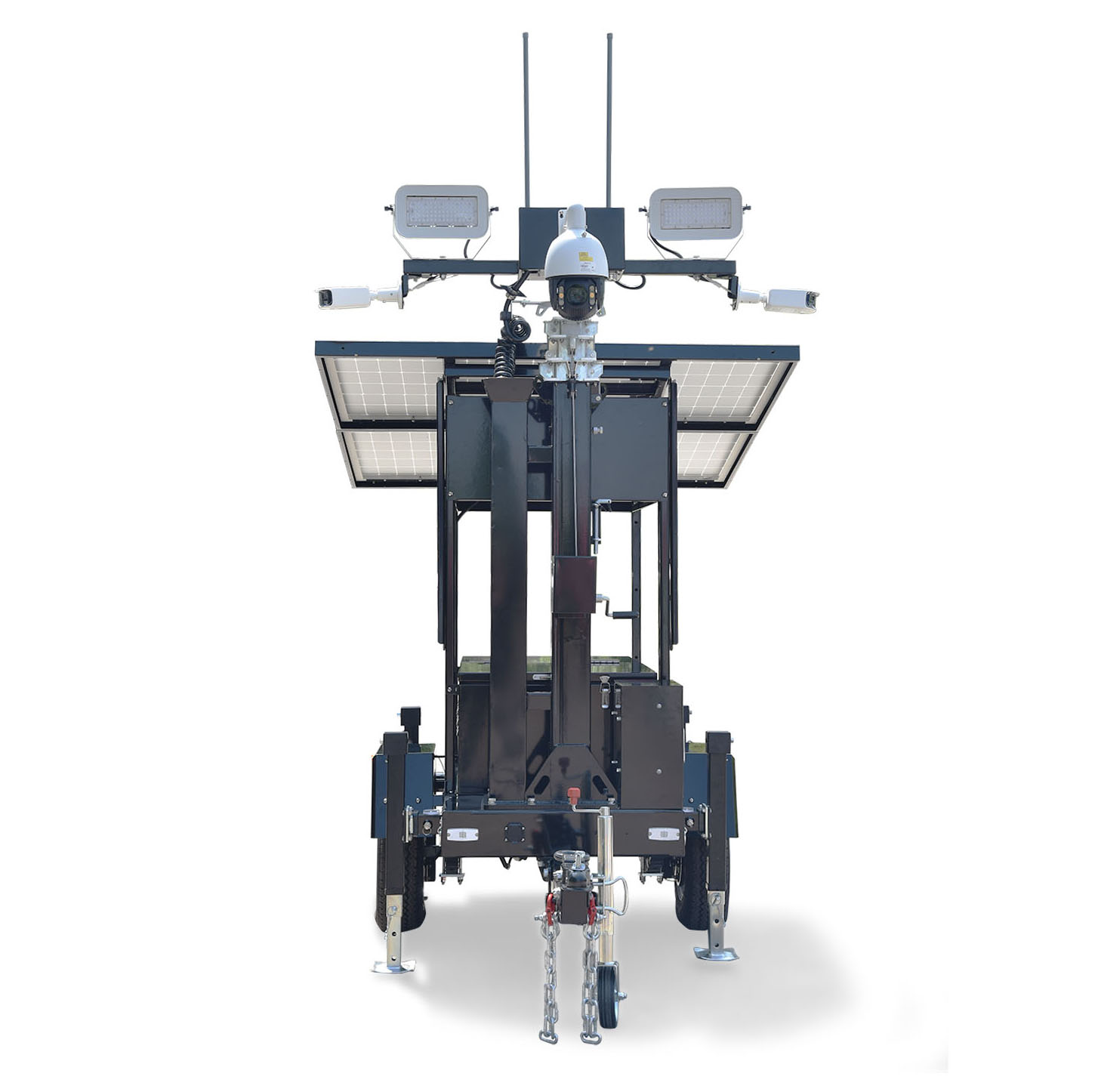

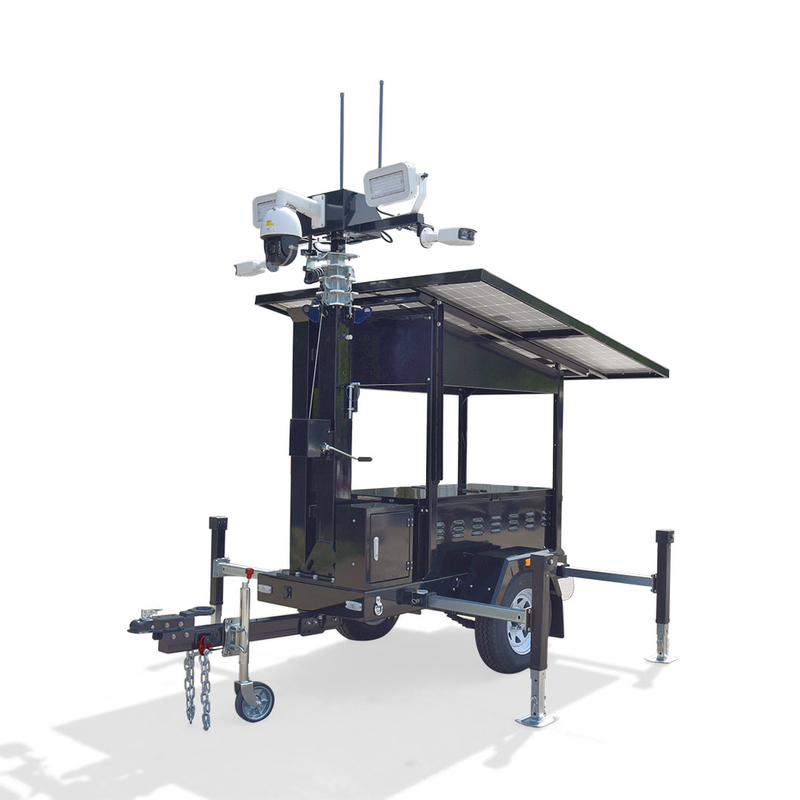

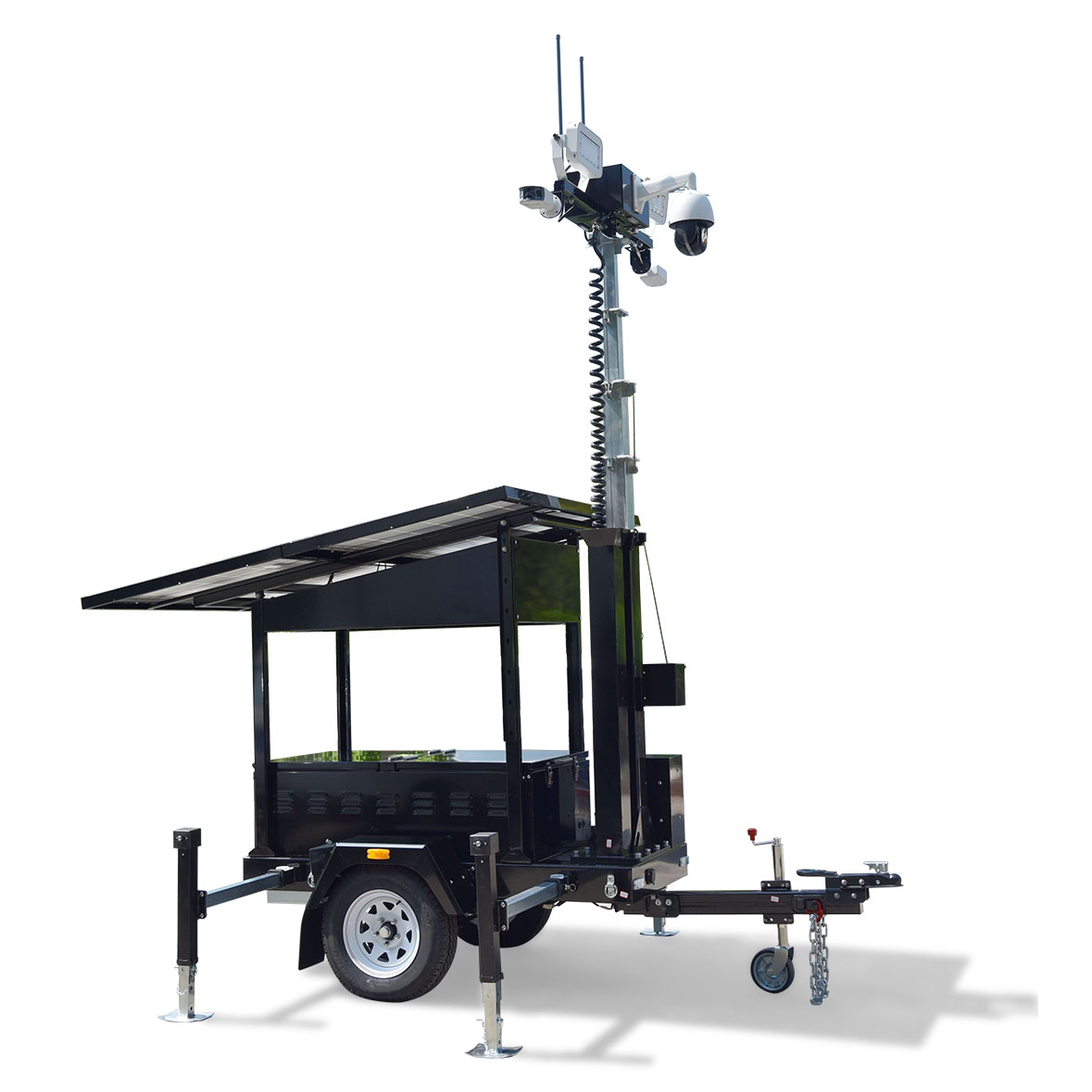

UNIV R&D UST-600 from 2019 as a commercial product.
it's became to be the popular model graduatelly because of the simple design,easy to assemblying and driving.
Also 4000W solar power per day could support customer running whole sets CCTV systemcontain PTZ camera,bullet cameras,NVR & Routers.
| Equipment Information | |
Model | UST-600 |
Length: | 3010mm |
Width: | 2000mm |
Height: | 2820mm |
Weight | 750kg |
Lighting System | |
Type of Lamp | LED lights |
Rate Power | 4X60W |
IP Rate | IP67 |
Output | 36,000lums |
Solar System | |
Solar Panel | Monocrystalline silicon |
Rate Power | 380W |
Quantity | 2 pcs |
Efficiency | 20.3% |
Battery System | |
Type | Gel-battery |
Capacity | 150Ah |
Voltage | 12VDC |
Quantity | 4 pcs |
Ambient Temperature | -35~60 ℃ |
Charge System | |
Type | MPPT |
Rated Charge Current | 30A |
Efficiency | 99.5% |
System Voltage | 24VDC |
GPRS | Optional |
Lifting System | |
Type | Telescopic Mast |
Material | Aluminium |
Max Height | 6.5 meters |
Lifting System | Manual / Electric |
Rotation | Optional |
Wind Rating Speed | 100Km/h |
Trailer System | |
Type | Mobile Single Axle Trailer |
Standard | Australia / America / Europe |
Tow Hitch | 50mm ball 2000Kg |
Brake system | / |
Hand Brake | / |
Stabilization Leg | 4 pcs Manual |
Suspension System | Spring Type |
Transportation | Truck, Crane, Forklift |
Tyre & Rim | 185R14C |
Hybrid System (Optional) | |
Inverter | Output AC power from trailer |
Battery Charger | Use AC power charge battery |
Back-up Genset | / |
Wind Turbine | 400W |
Download More Information | |
PDF Link   UST-600.pdf | |
Note: Please feel free to contact with us if any more customized request ! | |
