U4T‑KLED
UNIV
| Availability: | |
|---|---|
| Quantity: | |

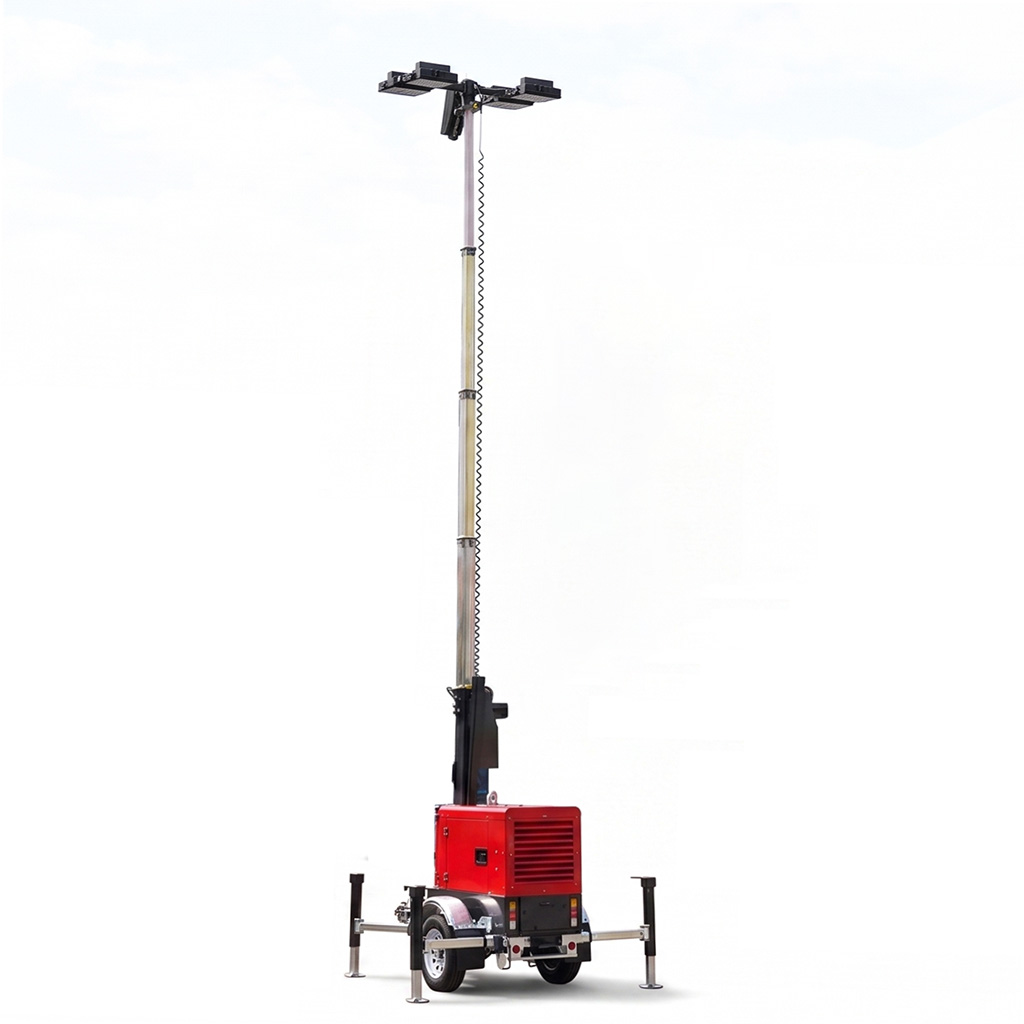

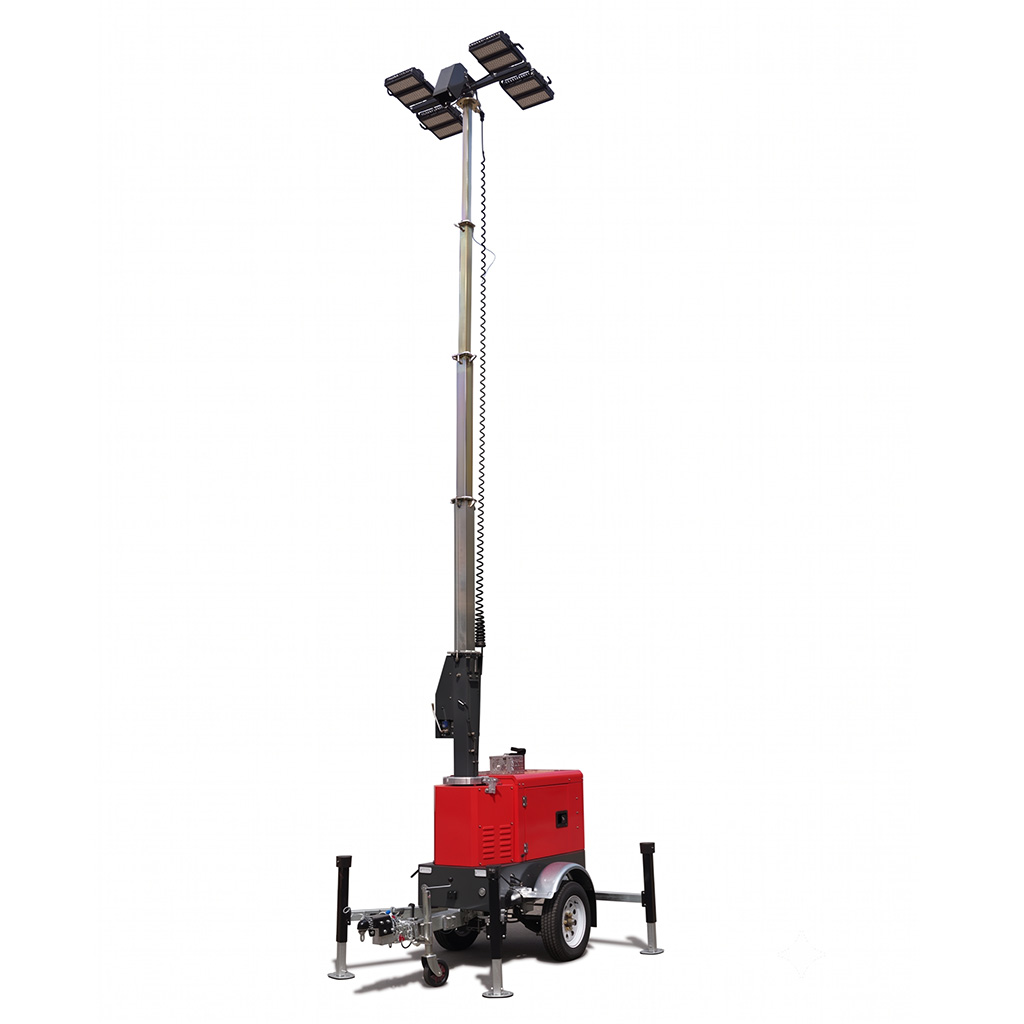

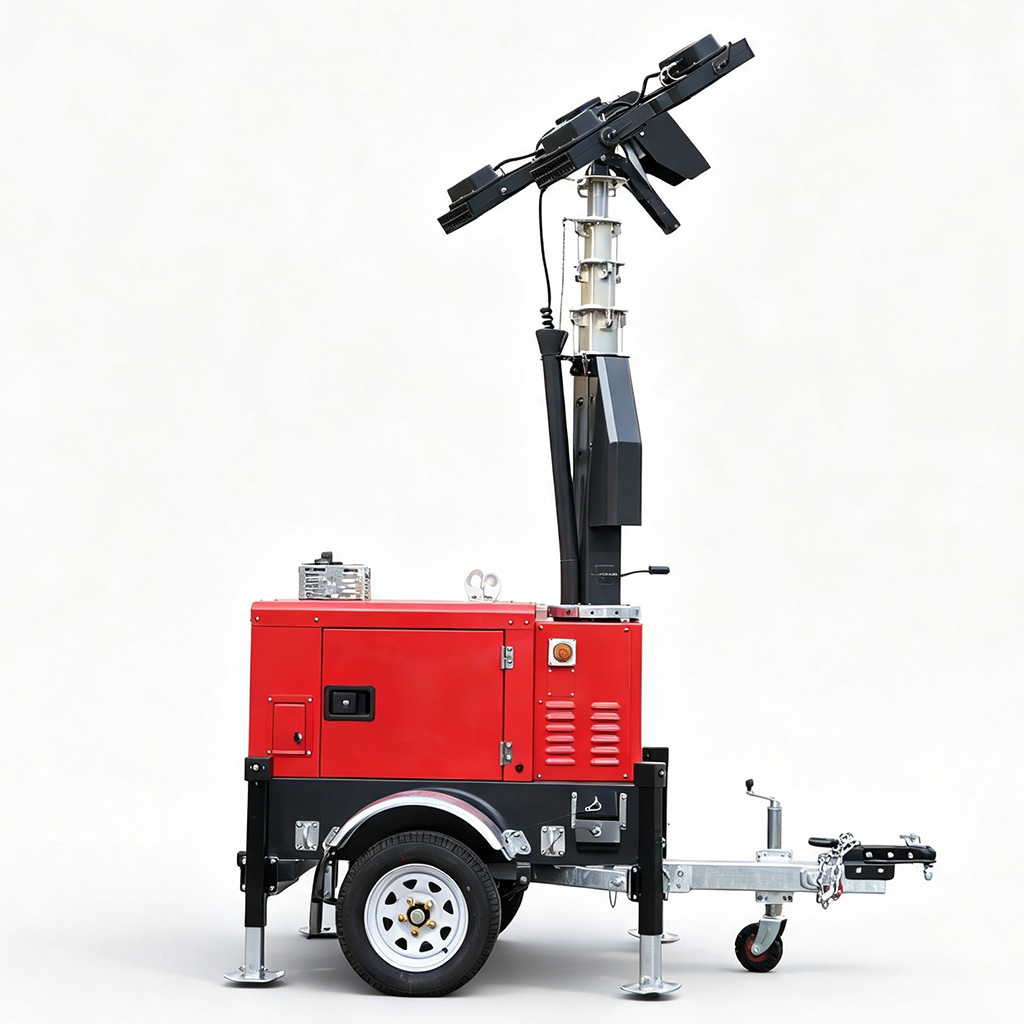

The U4T-KLED is a compact and reliable trailer-mounted diesel LED lighting tower powered by a genuine Kubota Z482 engine. Adopting a practical integrated design with 7m manual mast and flexible lamp angle adjustment, it delivers high-uniform large-area lighting. With low fuel consumption and stable daily performance, it is the ideal cost-effective model for general construction, municipal night works and medium-to-small rental fleets.
Original Kubota Z482 diesel engine, stable output and mature industrial reliability
4×350W high-efficiency LED lamps, producing 238,000Lms high-uniform illumination
7m manual lifting mast, supporting 355° manual rotation and 90° electric tilt adjustment
70L fuel tank with low fuel consumption for long-hour continuous night lighting
Manual & timer dual control modes for flexible on-site scheduling
Standard road-legal trailer with multi-stabilizer legs for stable terrain adaptation
Fully compliant with EU, Australian and North American international export standards
Genuine Kubota Stable Power
Equipped with authentic Kubota Z482 4kW naturally aspirated diesel engine, featuring mature structure, stable power output and low failure rate. It supports long-time continuous operation and has global after-sales guarantee, fully adapting to frequent rental and outdoor construction scenarios.
7m Flexible Manual Mast System
Adopts 5-section 7m manual lifting mast with lightweight and sturdy structure. It supports 355° manual horizontal rotation and 90° electric lamp tilt, realizing fast multi-directional lighting adjustment without complex hydraulic operation.
High-Uniform Large-Area LED Lighting
Configured with 4×350W industrial high-efficiency LED lights, reaching 238,000Lms total luminous flux. Flicker-free and glare-free lighting covers 3967㎡@5lux, providing bright and consistent vision for medium and large construction sites.
Low Fuel Consumption & Stable Endurance
Optimized power matching design cooperates with 70L standard fuel tank, with only 0.6L/h full-load fuel consumption. It effectively reduces refueling frequency and operation costs, supporting all-night uninterrupted construction.
Flexible Dual-Control Operation
Comes with manual one-key start-stop and automatic timer lighting dual modes. It adapts to fixed-time night construction and temporary emergency lighting, greatly improving on-site operation flexibility.
Road-Towable & Terrain-Adaptive Structure
Standard road-legal trailer with 50mm ball & 70mm ring hitch supports convenient highway towing and cross-site transfer. Four adjustable stabilizer legs ensure stable leveling on uneven rugged ground.
General Construction Night Works
Perfect for building construction, foundation engineering and municipal conventional night projects, providing stable and continuous high-brightness lighting.
Road & Municipal Maintenance
Suitable for highway night repair, road renovation and municipal facility maintenance, adapting to frequent site migration and short-cycle tasks.
Medium & Small Rental Fleets
With reliable performance, low failure rate and low maintenance cost, it is a cost-effective core model for rental fleet scale-up.
Temporary Outdoor Lighting
Applicable for construction camps, outdoor temporary bases and engineering standby lighting.
Emergency Temporary Rescue
Fast deployment provides instant stable lighting for municipal emergency repair, traffic accidents and disaster relief scenes.
Rental-Grade Stability
Proven Kubota power unit delivers ultra-low failure rate, suitable for high-frequency rental fleet circulation.
Cost-Effective Configuration
Balanced performance and procurement cost, creating high ROI for medium and small rental businesses.
Simple & Labor-Saving Operation
Manual mast with electric lamp adjustment, easy to operate and low maintenance threshold.
Low Operating Cost
Excellent low fuel consumption performance reduces long-term construction and rental operation expenses.
Wide Scenario Adaptability
Compact body with large lighting coverage meets most conventional night engineering demands.
Global Export Compatibility
Standard industrial configuration meets international certification requirements for global sales and project bidding.
Classification | Specification Item | U4T-KLED | U4T-RLED |
|---|---|---|---|
Basic Parameters | Model Name | Compact Diesel Trailer Light Tower | Cost-Effective Diesel Trailer Light Tower |
Product Type | Compact Diesel LED Light Tower | Economical Diesel LED Light Tower | |
Working Noise | To be confirmed | To be confirmed | |
Overall Weight | 1025KG | 1025KG | |
Transport Dimension | 2700×1400×2645mm | 2700×1400×2645mm | |
Lighting System | LED Configuration | 4 × 350W Industrial LED | 4 × 350W Industrial LED |
Total Luminous Flux | 238,000 LM | 238,000 LM | |
Illumination Coverage | 3967 ㎡ @ 5lux | 3967 ㎡ @ 5lux | |
Mast Specification | 7m Manual Mast, 355° Manual Rotation + 90° Electric Tilt | 7m Manual Mast, 355° Manual Rotation + 90° Electric Tilt | |
Power System | Power Unit | Original Kubota Z482 Diesel Engine | Original Raywin 2B06 Diesel Engine |
Rated Power | 4kW | 4kW | |
Fuel Tank Capacity | 70L | 70L | |
Fuel Consumption (Full Load) | 0.60 L/h | 0.65 L/h | |
External AC Output | N/A | N/A | |
Control & Structure | Controller System | Standard Intelligent Controller | Standard Intelligent Controller |
Control Mode | Manual Control / Timer Automatic Control | Manual Control / Timer Automatic Control | |
Trailer & Support | 50mm Ball & 70mm Ring Hitch Road Legal Trailer, Adjustable Stabilizer Legs | 50mm Ball & 70mm Ring Hitch Road Legal Trailer, Adjustable Stabilizer Legs |
