| Quantity: | |
|---|---|

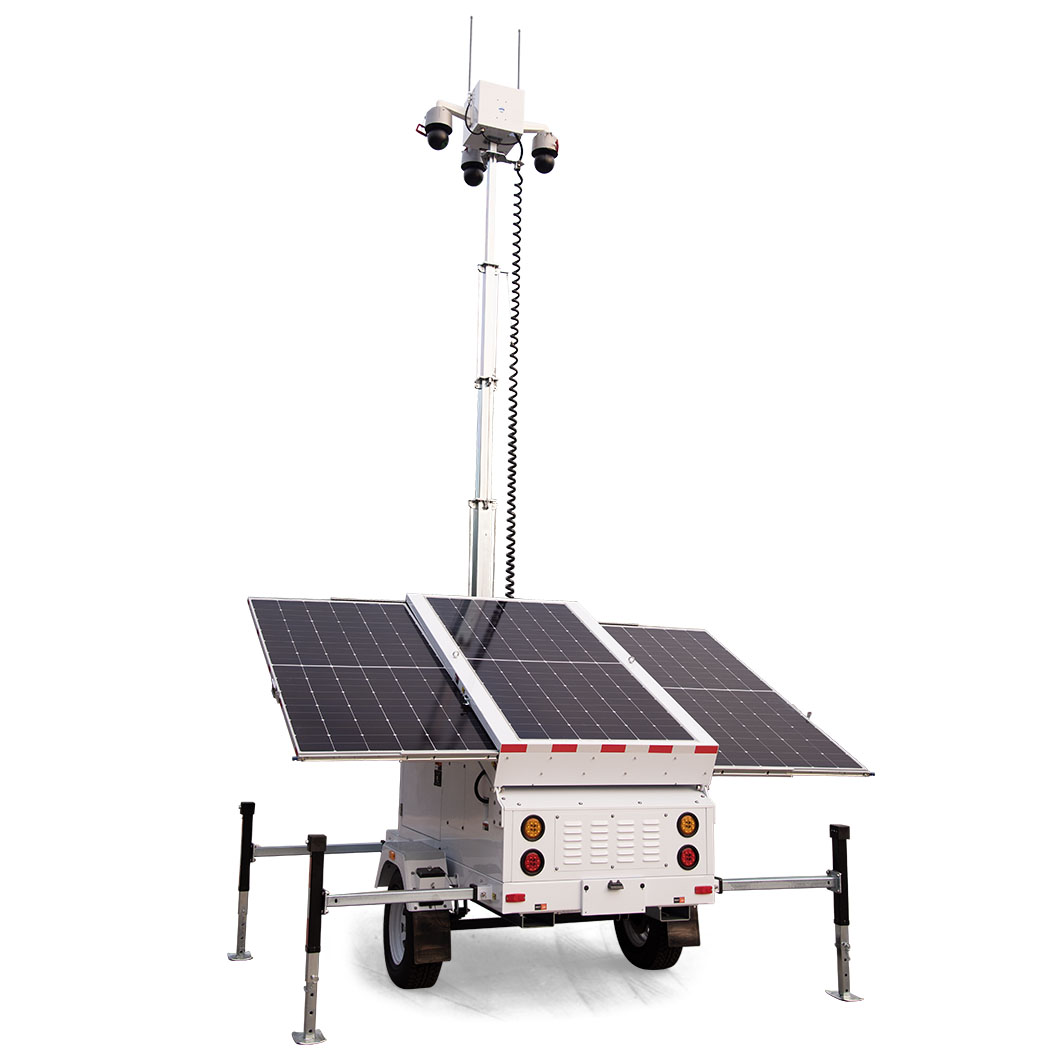

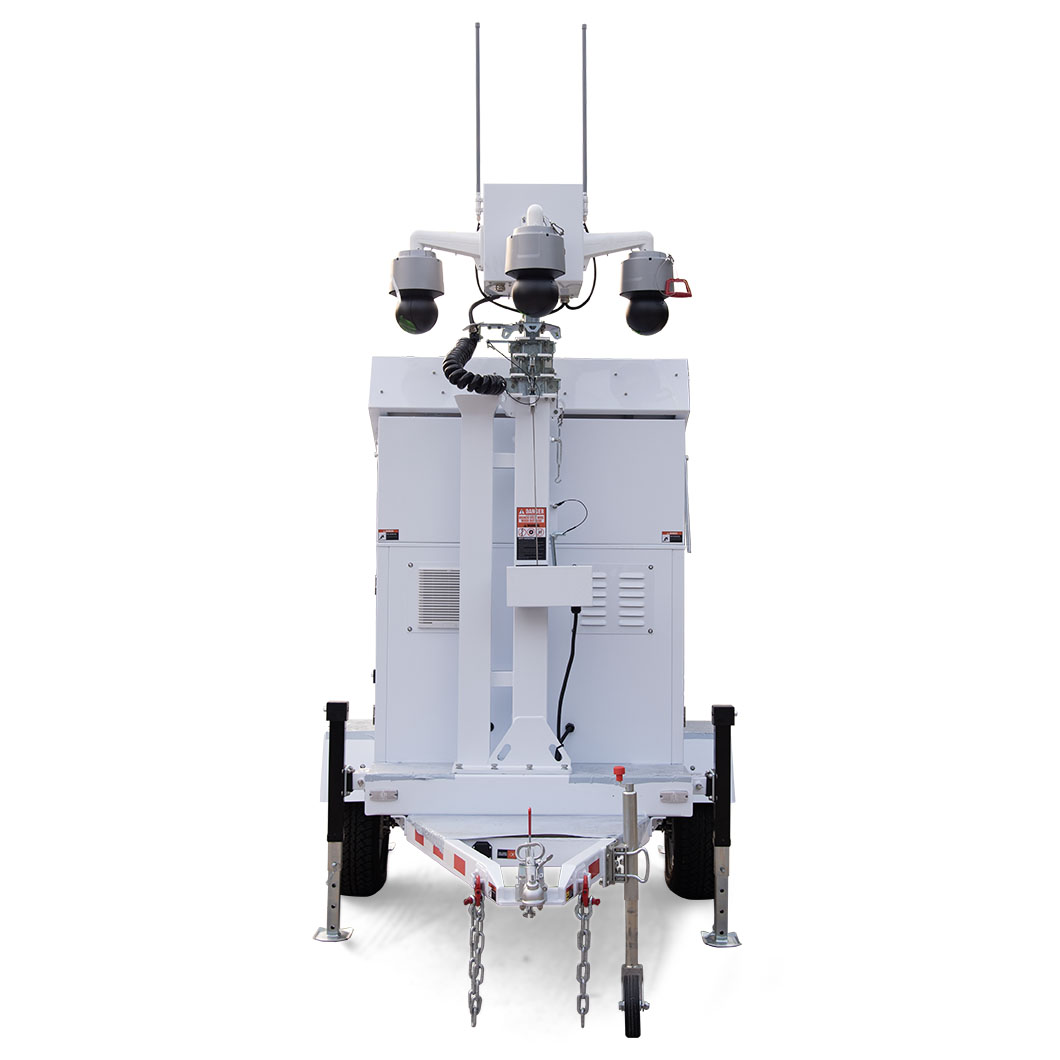

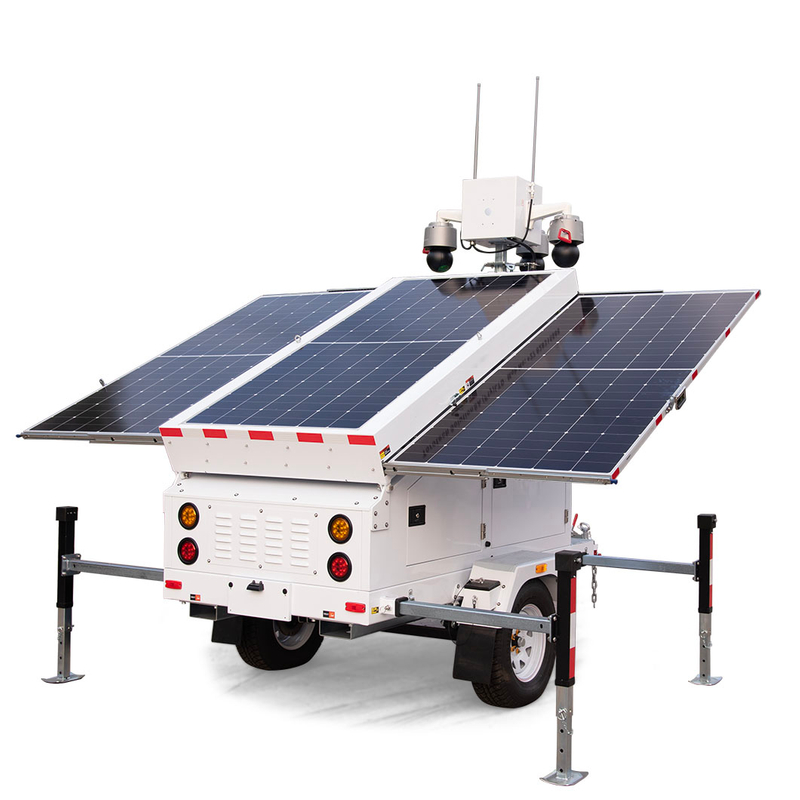

UST-900 is standard also the origin model,it's durable and pretty.
As a professional grad product,it's have Drawer type solar panel stand,lockable distribution box,hydraulic mast as optional.
Different with simple model,it's have enought room to mount Backup Genset,means that you could deploying the solar trailer outside
one month nearly even if rainy or cloudy.
| Base System: | |||||
| Brand: | UNIV | ||||
| Name: | Solar Light Tower | ||||
| Model: | UST-900 | ||||
| Material: | Steel Q235 | ||||
| Powder: | Outdoor Type | ||||
| Dimension: | Length×Width×Height | ||||
| Transport: | 2300×1500×2200 (mm) | ||||
| 7.5×5×7 (ft) | |||||
| Operate: | 3200×3400×6200 (mm) | ||||
| 10.5×11×20 (ft) | |||||
| Weight: | 1150kg / 2550lb | ||||
| System Voltage: | DC24V | ||||
| Work Temperature: | -35℃~50℃ / -31℉~122℉ | ||||
| Solar System: | Battery System: | ||||||||||
| Solar Panel: | 3 × 380W | GEL: | 6 × 150Ah | ||||||||
| Monocrystalline Silicon | Free-main | ||||||||||
| 60pcs | Deep-cycle | ||||||||||
| Voltage: | DC42V | Voltage: | DC12V | ||||||||
| Charging Time: | 8 hours | Series & Parallel: | 2 in series, then parallel | ||||||||
| Power Capacity: | 10800W·h | ||||||||||
| CCTV System: | Control System: | ||||||||||

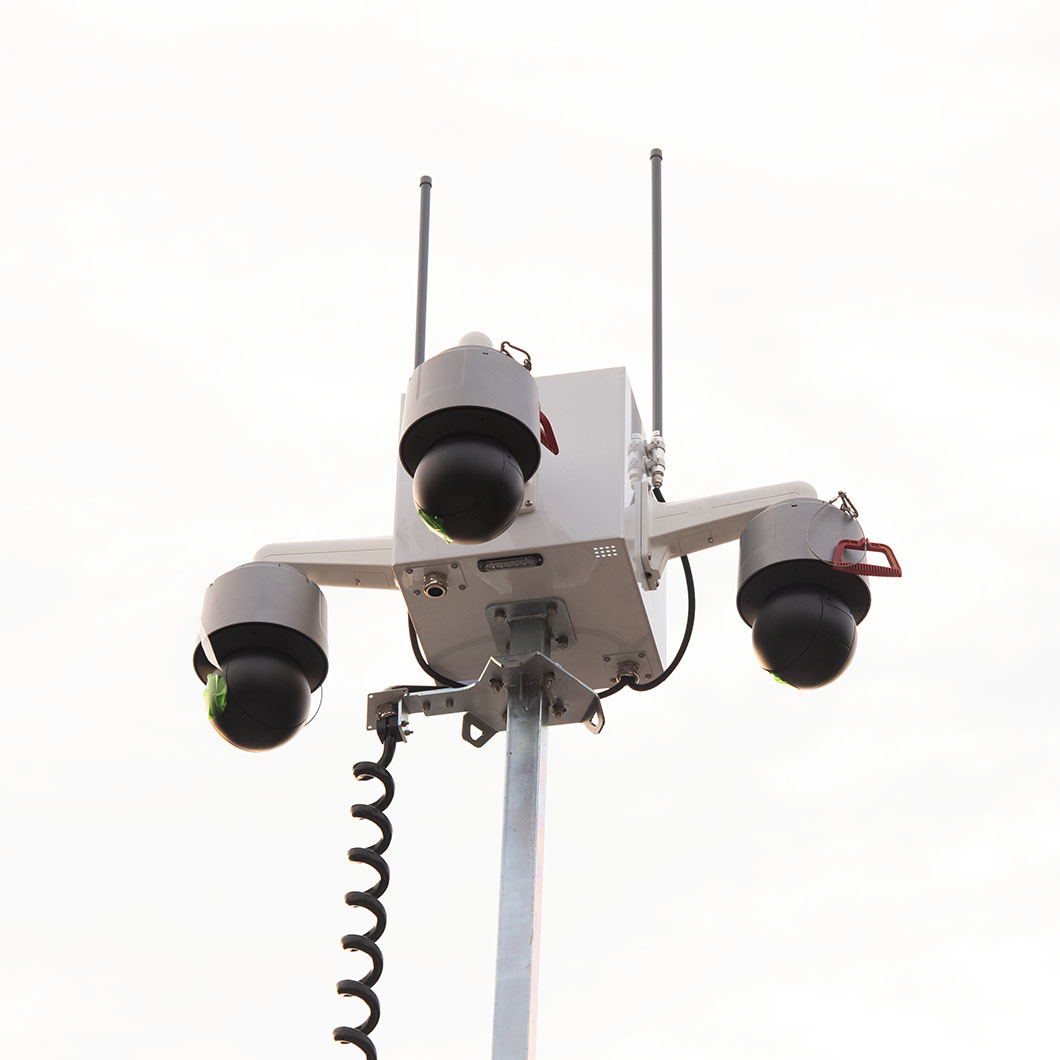

| PTZ: | 2 × 4MP | Solar Controller: | MPPT | ||||||||
| 25× Optical,16× Digital | 60A | ||||||||||
| 100m IR Night Vision | Efficiency: | 95%+ | |||||||||
| Bullet: | 2 × 2MP Bullet | Detection & Protection: | Short-Circuit | ||||||||
| NVR: | 4TB,4ch | Overload | |||||||||
| 32.5 days(126GB/day) | High Voltage | ||||||||||
| Monitor: | 22'' | High Temperature | |||||||||
| Loudspeaker: | Two-ways | Timer: | Dusk & Dawn | ||||||||
| Router: | 4G & Wi-Fi | Whole Machine: | Battery Isolator | ||||||||
| 500m | Each Device on-off | ||||||||||
| LED: | 1 × 50W | Mast Up-down | |||||||||
| Power Consumption: | 120W | ||||||||||
| Running Time: | 3 Days | ||||||||||
| Mast System: | Trailer System: | ||||||||||
| Body: | Steel Q235 | Standard: | US / AU / EU | ||||||||
| Galvanized | Tow Hitch: | 50mm / 2'' Ball Type | |||||||||
| Fastener: | Stainless Steel 304 | Trailer Light: | 7 Pin | ||||||||
| Wire Rope: | Stainless Steel 316 | Jockey Wheel: | 200mm / 8'' | ||||||||
| 4mm | Axle: | Single | |||||||||
| Type: | Square | Suspension | |||||||||
| Telescopic | Bump Brake | ||||||||||
| Height： | 6.5m / 21.3ft | Tire: | 2 × 215/70R15C | ||||||||
| Section: | 5 | Wheel Chock: | 2 | ||||||||
| Spring Cable: | 4 × Cat6e + 1 × Power Supply | Forklift Hole: | 2 | ||||||||
| Lifting Method: | Electric Winch | Lifting Ring: | 4 | ||||||||
| Recommended Loading: | 5kg ~ 70kg / 11lb ~ 154lb | Outrigger: | 4 × Manual | ||||||||
| Windproof: | 117km/h / 73mph | Galvanized | |||||||||
| Warranty: | 2 years | ||||||||||
| Accessories: | Certification: | ||||||||||
| Operation Manual | Parts Manual | ISO9001 | ISO14001 | ||||||||
| Controller Manual | Allen Wrench | CE | UL | ||||||||
| Hex Wrench | SAA | COC | |||||||||
| Download More Information |  UST-900.pdf | ||||||||||
