Generator Light Tower
for Construction, Mining & Emergency Lighting
Generator Light Towers ——UNIV
Engineered for demanding outdoor environments, our generator light towers combine high-output LED lighting with a telescopic mast to deliver wide-area, adjustable illumination wherever it’s needed. Built on a trailer-mounted mobile platform, these units are easy to transport and quick to deploy across construction sites, mining operations, events, and emergency scenarios. Powered by reliable diesel generators, they ensure low fuel consumption, extended runtime, and consistent performance, while the rugged design withstands harsh working conditions and continuous operation.
Product Advantages
Superior Lighting Performance
4×400W LED lights offering unmatched brightness.
350-degree rotatable mast for customized lighting angles.
Reliable & Fuel-Efficient Power System
Low emission Raywin 3C11TG2-4 (16.08HP) diesel engine ensures stable performance.
80-hour operation time reduces frequent refueling needs.
Sturdy & Weather-Resistant Construction
Fully bunded design to prevent leaks and spills.
IP23 protection grade ensures durability in tough environments.
Easy Transportation & Setup
Towable design with a foldable tow bar and stabilizing legs.
80 km/h towing speed for quick deployment.
READ MORE PRODUCTS

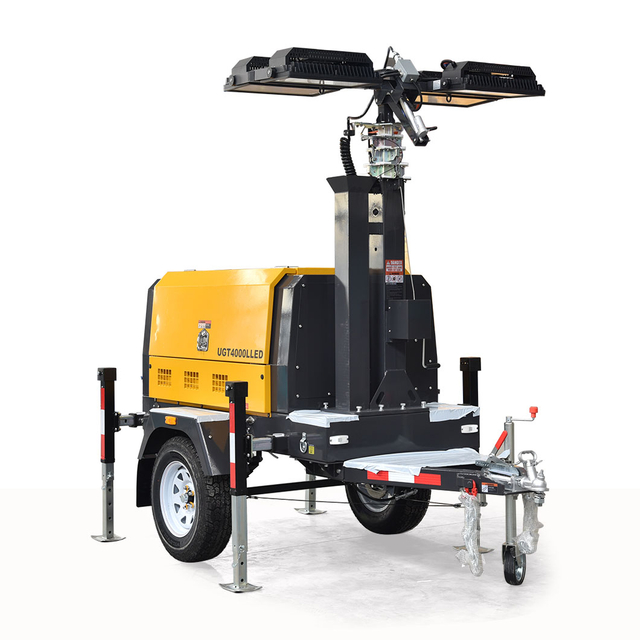

| MODEL | UGT-4000RLED | UGT-4000LLED | |
| Genset rated Power (KW) | 50KW | 60KW | |
| Dimension | Lenth | 3050mm | 3031mm |
| Width | 1500mm | 1488mm | |
| Height | 3350mm | 3220mm | |
| Height extended fully | 9M | 7.5m (9m optional) | |
| Gross Weight | 1300kg | 1300kg | |
| Engine | Engine Model | Raywin 3C11TG2-4 (16.08HP) | Laidong KM385BD |
| Rated Speed（rpm） | 1500 | 1500/1800 | |
| Cylinder No. | 3 | 3 | |
| Engine type | water-cooled | 4 stroke,water-cooled | |
| Air intake methed | Naturally aspirated | Naturally aspirated | |
| Emission | Non-emission | Non-emission | |
| Alternator | Model | Kwise S164G108B3 | kWISE KAL164A1 |
| Frequency (HZ) | 60 | 50/60 | |
| Rated voltage | 220V 50hz/AVR | 230V (50HZ), 240(60HZ) AC | |
| Insulation class | Class H | Class H | |
| Protection grade | IP23 | IP23 | |
| Mast and Light | Light type | LED | LED |
| Luminous Flux | 256000 LM | 210000 LM | |
| Light Qty x WATT | 4×400W | 4×350W | |
| Mast Sections | 9 | 5 | |
| Mast lifting method | Manual/Electric witch/Hydraulic | Manual/Electric witch/Hydraulic | |
| Mast Rotation | No/350 degrees optional | No/355 degrees optional | |
| Light Angle Adjust | Electric actuator | Electric actuator | |
| Trailer | Suspension | Leaf spring with mechanical braker | Leaf spring with mechanical braker |
| Towing Bar | A frame with Jockey wheel | Foldable Tow bar with Jockey wheel | |
| Stabilizing Leg | 4Pcs Manual Stabilizing Leg | 4Pcs Manual Stabilizing Leg | |
| Rim & Tyre | 14" | 14" | |
| Towing coupler | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | |
| Tail Lights | complex tail light | complex tail light | |
| Max Towing speed | 80km/h | 80km/h | |
| Other Item | Fuel Tank Type | Metal | Metal |
| Fuel Tank capacity | 100L | 45L | |
| Operating hours | 80 Hrs | 30 Hrs | |
| Controller | UK DEEPSEA DSE4620 | UK DEEPSEA DSE4520 | |
| Output | 2 receptacles | ||
| Max.Against Wind | 115km/hr | 20 m/s (45mph) | |
| Noise level dBA@7M | 74dB at 7m | 63dB(A) at 7m | |
| Max.Loading Qty by 40HQ | 14 | 14 |
Application of Generator Light Tower for ?
Construction
and roadwork lighting
Generator light towers provide reliable and high-intensity illumination for construction sites, roadworks, and infrastructure projects, ensuring safe and efficient night operations. They are ideal for remote or off-grid job sites where stable power supply is limited, helping improve productivity and worker safety.
Outdoor event
and temporary site lighting
These light towers are widely used for outdoor events such as festivals, concerts, sports games, and exhibitions, delivering consistent lighting for large temporary venues. Their mobility and quick setup make them perfect for short-term applications where flexible and dependable lighting solutions are required.
Emergency rescue, mining, industrial and security lighting
Generator light towers play a critical role in emergency response, disaster relief, mining operations, and industrial sites by providing instant illumination in harsh and demanding environments. They are also suitable for outdoor security lighting, ensuring continuous visibility and safety in remote or high-risk areas.
Company Advantages
Innovative Technology
Our commitment to cutting-edge research and development ensures that we deliver state-of-the-art lighting solutions to meet diverse industry needs.
Global Reach
With a robust global network, we provide our clients with reliable support and service, no matter where they are located.
Dedicated Service
Our professional team is always ready to assist, ensuring that our clients receive exceptional service and solutions tailored to their requirements.
Get Started with Our Generator Light Tower
FAQ
What is the maximum mast height?
The standard mast extends up to 9 meters, with an optional 7-meter extension available for enhanced versatility.hetic appeal, and suitability for different applications. Our team can help you choose the best material based on your specific needs and preferences.
How long can the lighting tower operate on a full fuel tank?
Can the lighting tower be rotated for directional lighting?
What type of power supply does it use?
What are the available mast lifting options?
