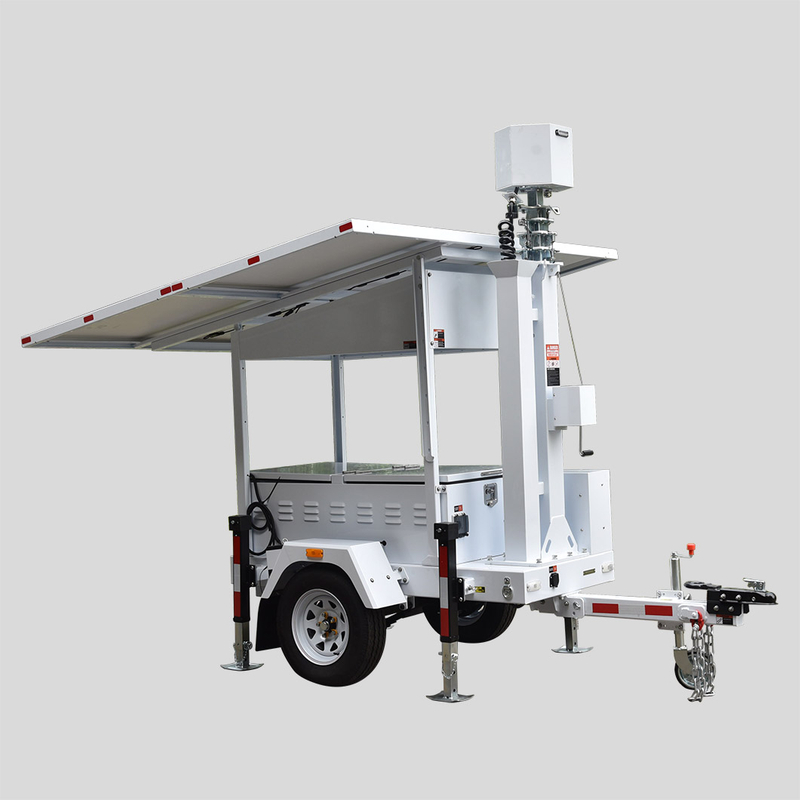

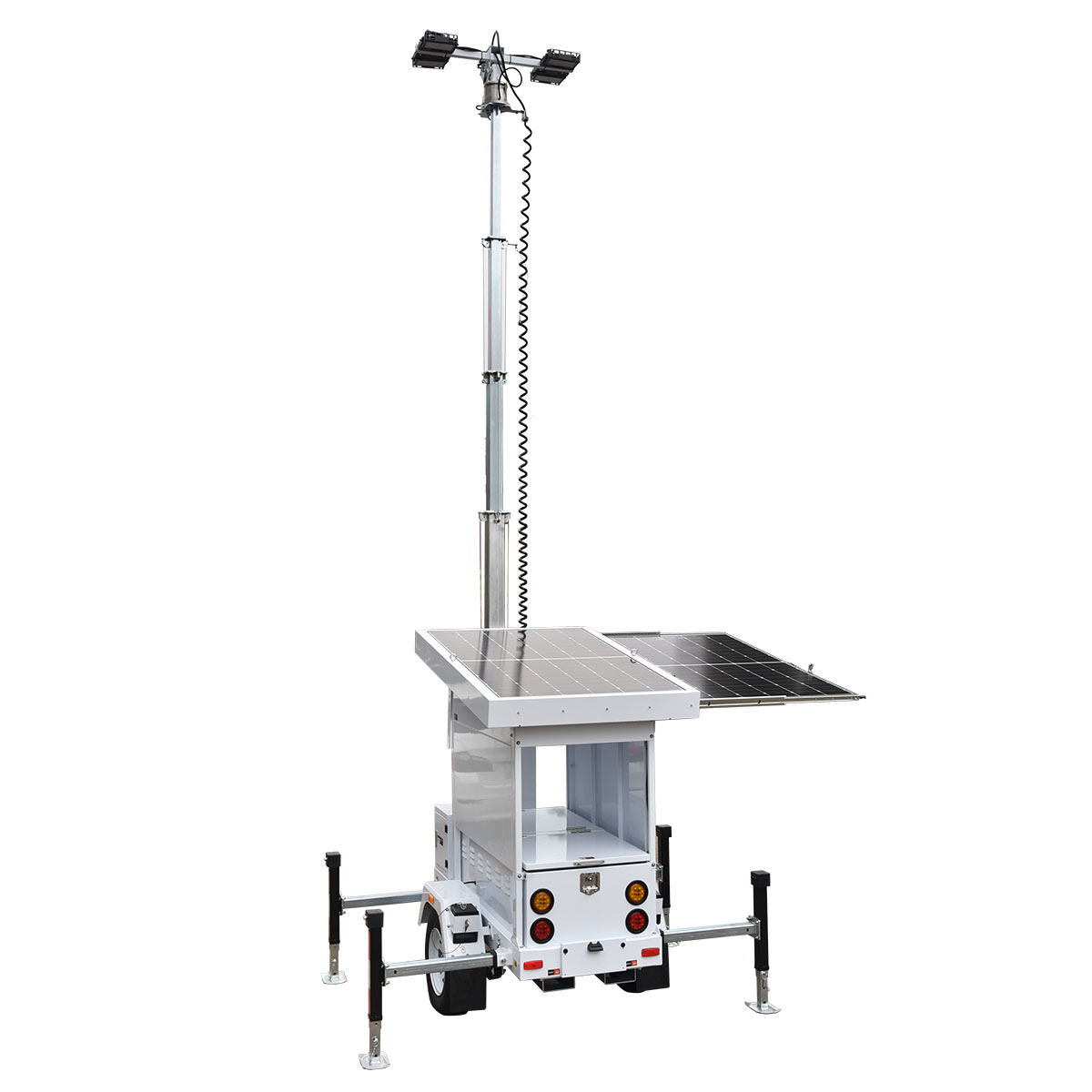

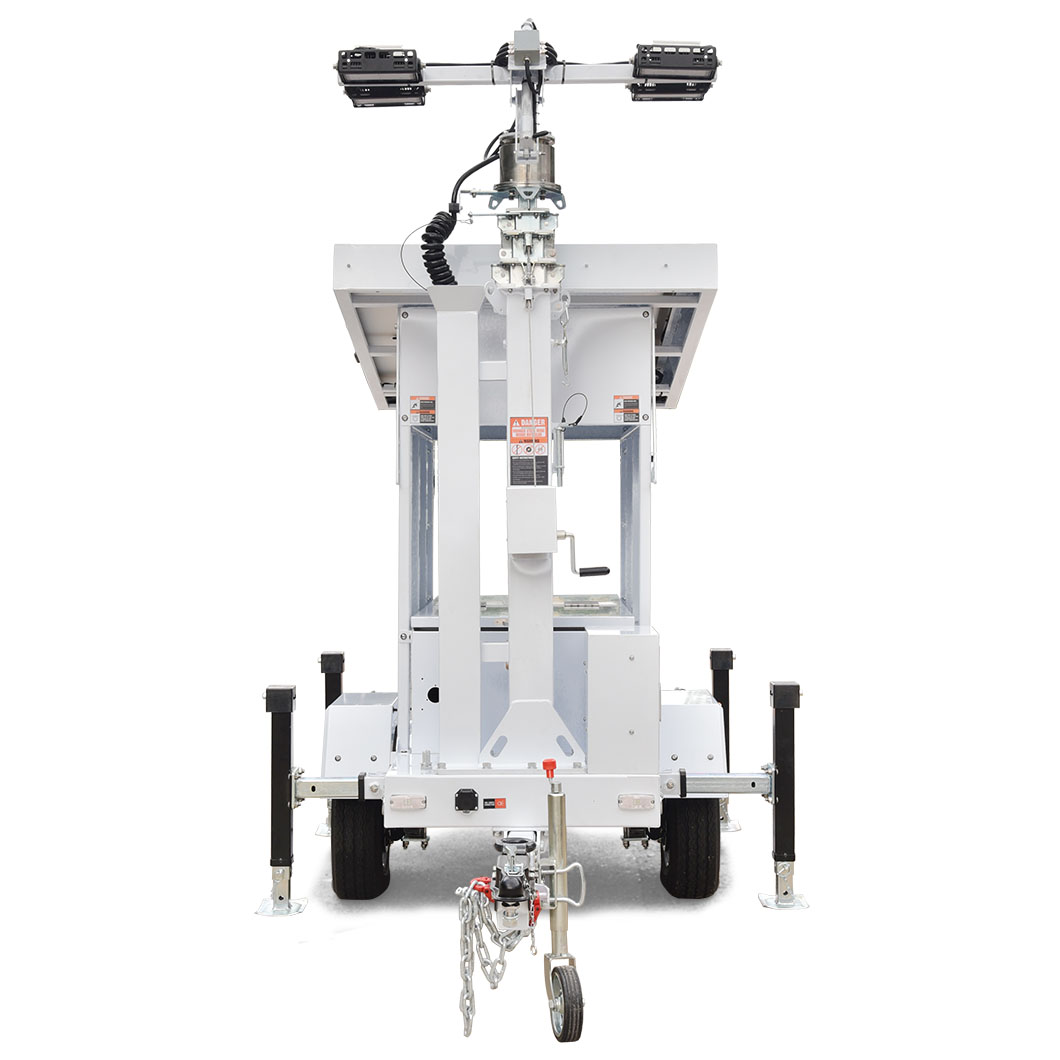

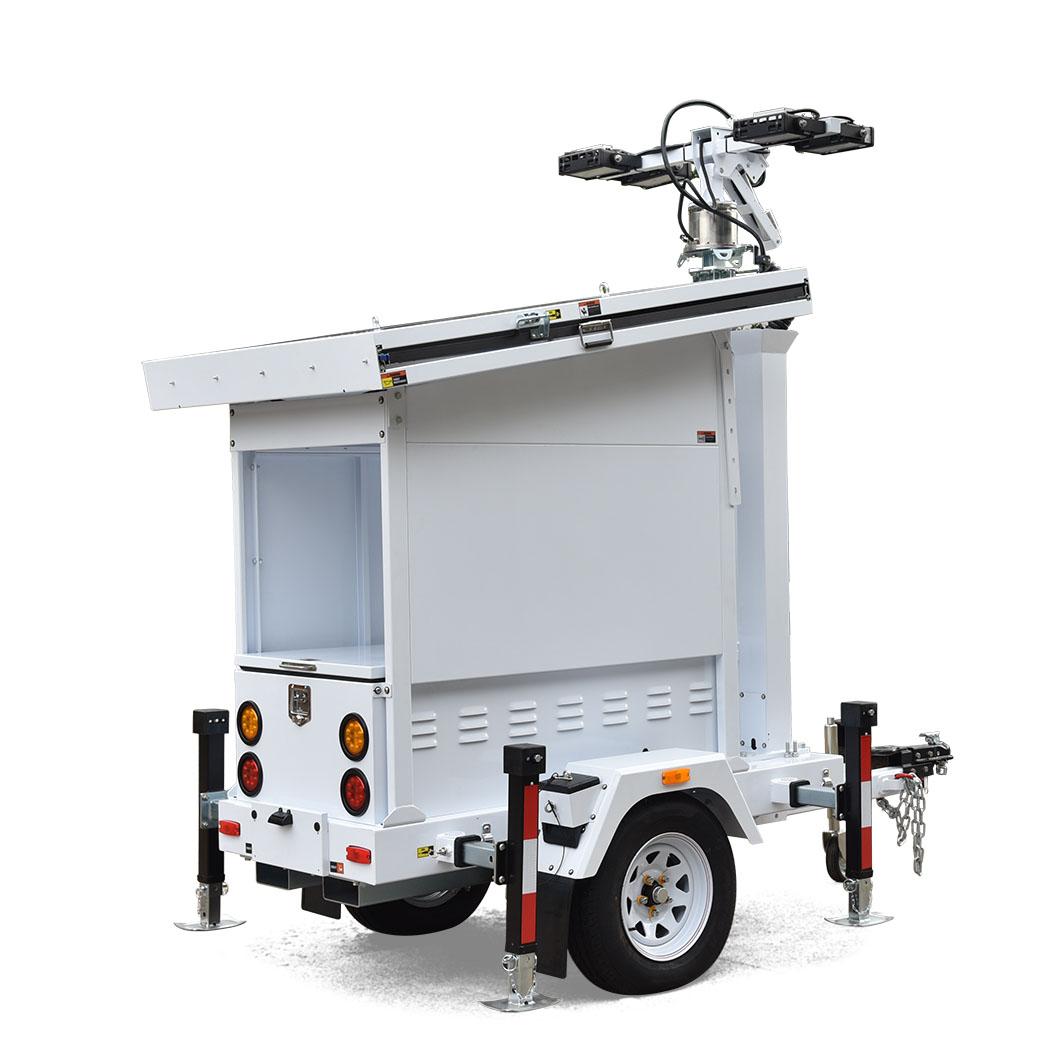

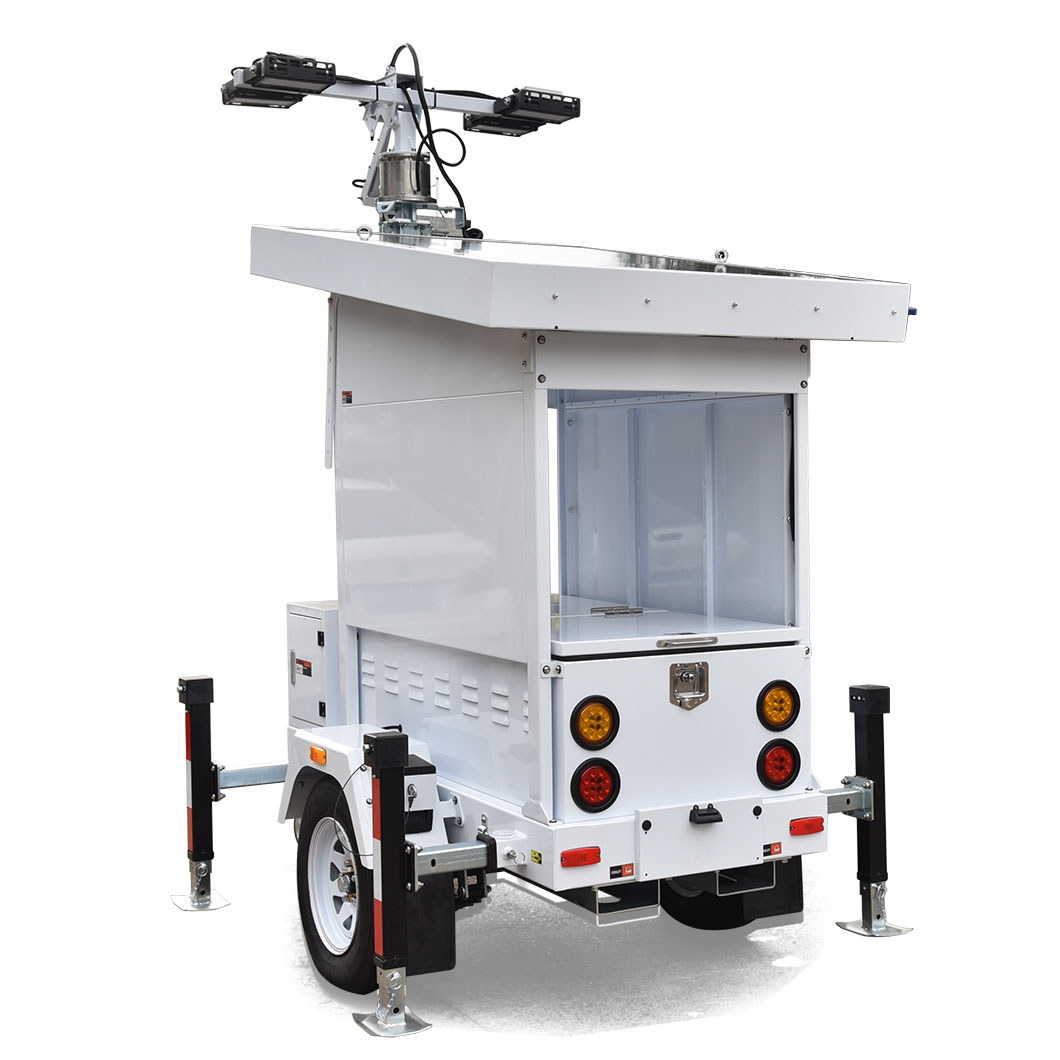

As a basic level light tower,under keep the normal function,reduce the spend of steel plate as possible.It makes it possible to cover the daily needs of the entire region in a lower price and in larger quantities.
UST-600 SERIES：
1. 2x455w Solar panel design trailer
2. 4*60w high efficient LED light for cover 2000 square meters
3. Optional 6-9m manual / electric telescopic mast
4. Mobile trailer with Australian / European / American standard
| Technical Data | |||||
|   PLUS | PLUG | PLUS | ECO & PLUS & PLUG | |
| Model | UST-600E4 | UST-600S4 | UST-600P4 | UST-600S5 | UST-600PS5 |
| Type of Lights | 4X60W LED | 4X60W LED | 4X60W LED | 4X60W LED | 4X60W LED |
| Lights Output | DC24V, 36,000LUMS | DC24V, 36,000LUMS | DC24V, 36,000LUMS | DC24V, 36,000LUMS | DC24V, 36,000LUMS |
| Solar Panel | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon |
| Rate Power | 2x455W | 2x455W | 2x455W | 2x455W | 2x455W |
| PV Controller | MPPT 30A | MPPT 30A | MPPT 30A | MPPT 30A | MPPT 30A |
| Type of Battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery |
| No. of Battery | 4X150AH DC12V | 4X200AH DC12V | 4X150AH DC12V | 4X200AH DC12V | 4X200AH DC12V |
| Battery Capacity | 300AH | 400AH | 300AH | 400AH | 300AH |
| System Voltage | DC24V | DC24V | DC24V | DC24V | DC24V |
| Mast | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Galvanized | Telescopic, Galvanized |
| Maximum Height | 6.5m/21.3ft | 6.5m/21.3ft | 6.5m/21.3ft | 7m/9m | 7m/9m |
| Wind Rating Speed | 100KM/H | 100KM/H | 100KM/H | 100KM/H | 100KM/H |
| Lifting System | Manual / electric optional | Manual / electric optional | Manual / electric optional | Manual / electric optional | Manual / electric optional |
| Battery Charger | / | / | 1500W | / | 1500W |
| Axle NO: | Single axle | Single axle | Single axle | Single axle | Single axle |
| Tyre and Rim | 14 inch | 14 inch | 14 inch | 14 inch | 14 inch |
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual |
| Tow Hitch | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring |
| Color | Customized | Customized | Customized | Customized | Customized |
| Working Temperature | -35-60 C | -35-60 C | -35-60 C | -35-60 C | -35-60 C |
| Operate Time | 21 hours | 28 hours | 21 hours | 28 hours | 21 hours |
| Charge Time (Solar) | 8 hours | 10 hours | 8 hours | 10 hours | 8 hours |
| Charge Time (AC) | / | / | 10 hours | / | 10 hours |
| Dimensions | 2356x2104x2765mm | 2356x2104x2765mm | 2356x2104x2765mm | 3100x2104x2660mm | 3100x2104x2660mm |
| Dry Weight | 750kg | 780kg | 780kg | 850kg | 850kg |
| Download UST-600 : |  UST-600.pdf | ||||
| Download : |  UNIV Lighting towers & CCTV catalog .pdf | ||||
| Note: Please feel free to contact with us if any more customized request ! | |||||
| | @ UNIV POWER | |||
 | 20GP container | 6 units | |||
| 40HQ container | 14 units | ||||
