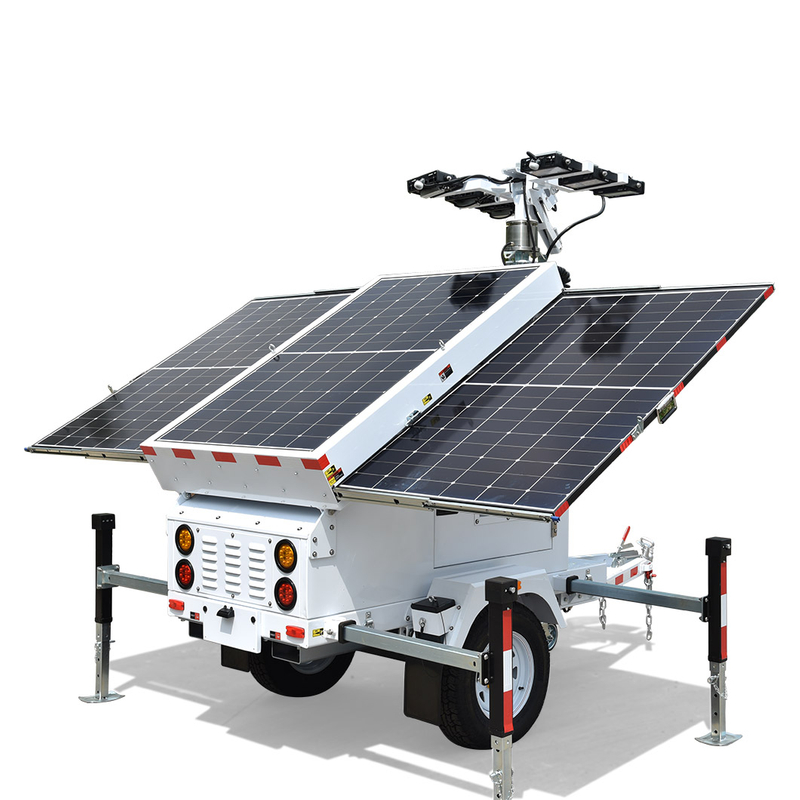

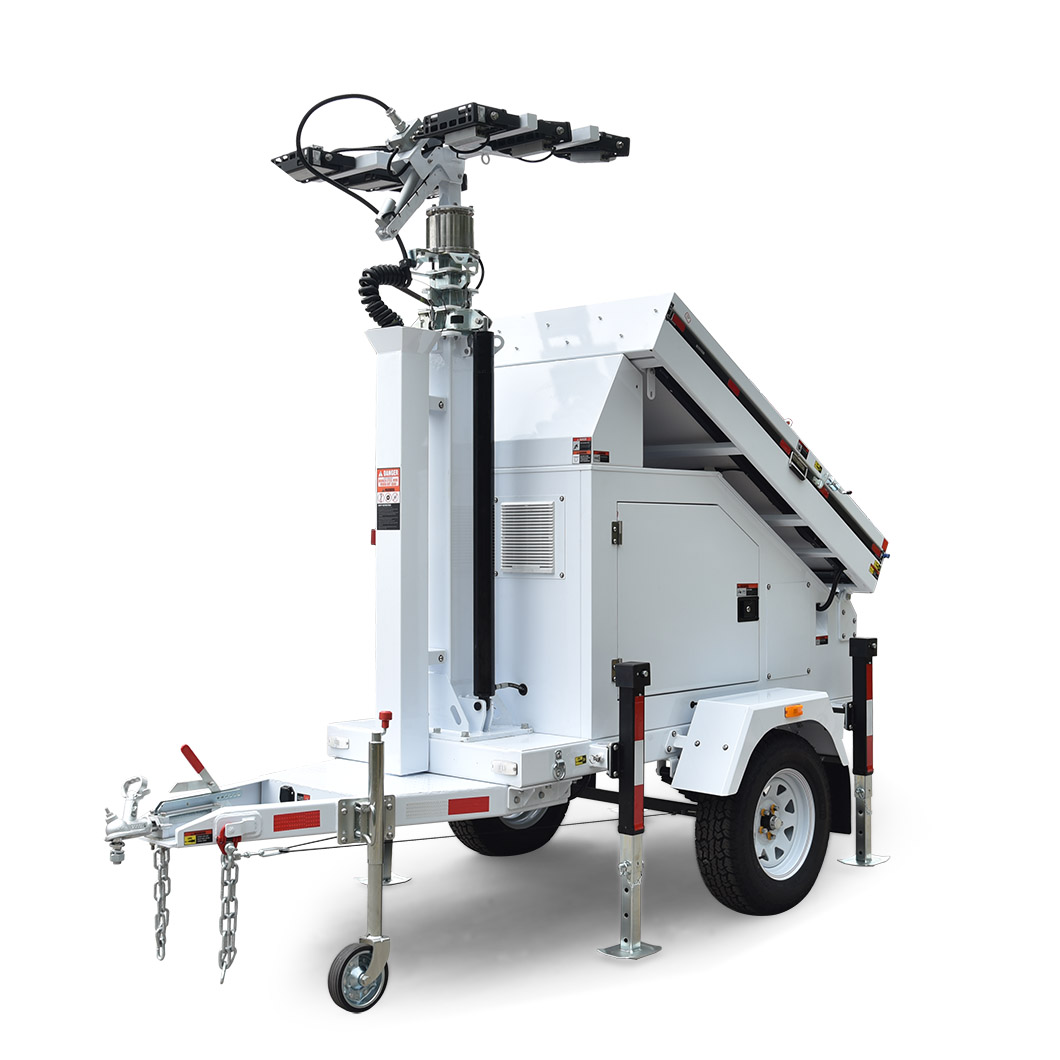

Based on the concept of energy saving and environmental protection,we R&D the new product called solar light tower,which could depolyed at the far district in long term,self-powered forever under the sunshine.
UST-900 SERIES：
1. 3x380w / 3x455w Solar panel design trailer
2. 4*100w / 6*100W high efficient LED light for cover 3000 square meters
3. Optional 6-9m manual / electric telescopic mast
4. Mobile trailer with Australian / European / American standard
| Technical Data | ||||||||||
  ECO | ECO |  PLUG | PLUS & HYDRAULIC | PLUS & AC & HYDRAULIC | ||||||
| Model | UST-900E4 | UST-900E5 | UST-900P5 | UST-900S5H | UST-900AS9H | |||||
| Type of Lights | 4X100W LED | 4X100W LED | 4X100W LED | 4X100W LED | 6X100W LED | |||||
| Lights Output | DC24V, 60,000LUMS | DC24V, 60,000LUMS | DC24V, 60,000LUMS | DC24V, 60,000LUMS | DC24V, 60,000LUMS | |||||
| Solar Panel | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | |||||
| Rate Power | 3x435W | 3x435W | 3x435W | 3x435W | 3x435W | |||||
| PV Controller | MPPT 40A | MPPT 40A | MPPT 40A | MPPT 40A | MPPT 40A | |||||
| Type of Battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery | |||||
| No. of Battery | 6X150AH DC12V | 6X150AH DC12V | 6X150AH DC12V | 6X150AH DC12V | 6X200AH DC12V | |||||
| Battery Capacity | 450AH | 450AH | 450AH | 450AH | 600AH | |||||
| System Voltage | DC24V | DC24V | DC24V | DC24V | DC24V | |||||
| Mast | Telescopic, Aluminium | Telescopic, Galvanized | Telescopic, Galvanized | Telescopic, Galvanized | Telescopic, Galvanized | |||||
| Maximum Height | 6.5m | 7m/9m optional | 7m/9m optional | 7m | 9m | |||||
| Wind Rating Speed | 100KM/H | 100KM/H | 100KM/H | 100KM/H | 100KM/H | |||||
| Lifting System | Manual / Electric | Manual / Electric | Manual / Electric | Hydraulic | Hydraulic | |||||
| AC Output | / | / | / | / | 1000W | |||||
| Battery Charger | / | / | 1500W | 1500W | 16A | |||||
| Axle NO: | Single axle | Single axle | Single axle | Single axle | Single axle | |||||
| Tyre and Rim | 15 inch | 15 inch | 15 inch | 15 inch | 15 inch | |||||
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | |||||
| Tow Hitch | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | |||||
| Color | Customized | Customized | Customized | Customized | Customized | |||||
| Working Temperature | -35-60 C | -35-60 C | -35-60 C | -35-60 C | -35-60 C | |||||
| Operate Time | 19 hours | 19 hours | 19 hours | 19 hours | 17 hours | |||||
| Charge Time (Solar) | 8.5 hours | 8.5 hours | 8.5 hours | 8.5 hours | 10 hours | |||||
| Charge Time (AC) | / | / | 10 hours | 10 hours | 26 hours | |||||
| Dimensions | 3325x1575x2685mm @6.5m | 3325x1575x2525mm @7m 3325x1575x2860mm @9m | 3325x1575x2525mm @7m 3325x1575x2860mm @9m | 3325x1575x2525mm @7m | 3787x1670x2410mm @9m | |||||
| Dry Weight | 1175kg | 1265kg | 1275kg | 1375kg | 1730kg | |||||
| 20GP container | 3units | 3units | 3units | 3units | 2units | |||||
| 40HQ container | 7units | 7units | 7units | 7units | 4units | |||||
| Download UST-900: |  UST-900.pdf | |||||||||
| Download : | UNIV Lighting towers & CCTV catalog .pdf | |||||||||
| Note: Please feel free to contact with us if any more customized request ! | ||||||||||
